Removing Clutch Pedal

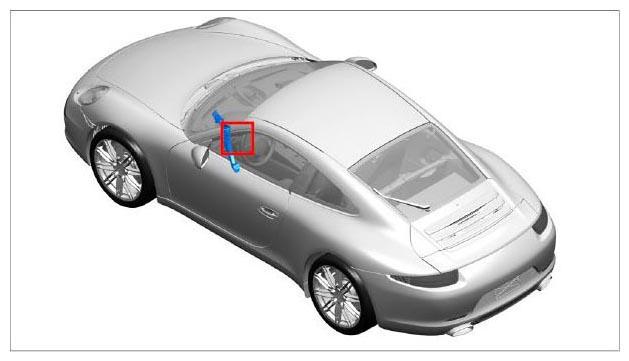

Fig 1: Identifying Clutch Pedal Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

1. Secure the clutch power spring assembly.
   1. 1.1. Pull off rubber sleeve on the plenum panel -arrow-  .

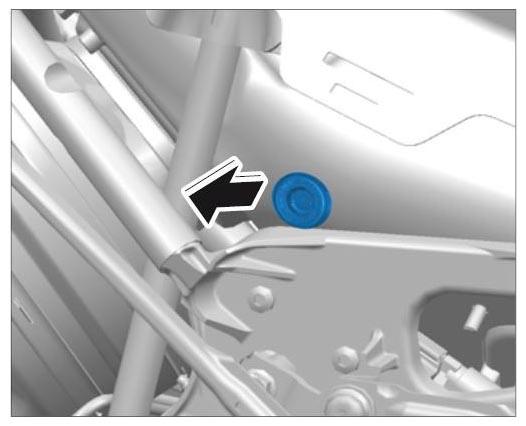

      Fig 2: Pulling Off Rubber Sleeve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Press the clutch pedal -1-  slightly -arrow A-  until the clutch power spring axle -2-  is visible through the bore.

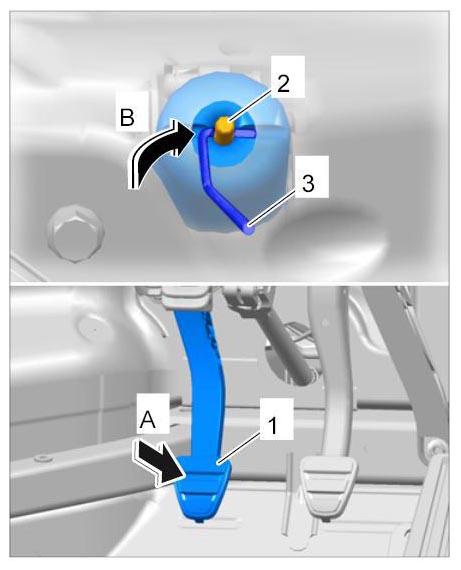

      Fig 3: Securing Clutch Power Spring Assembly

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Guide a suitable cotter pin -3-  into the bore on the clutch power spring axle -2-  (-arrow B-  ).
2. Loosen clutch master cylinder.

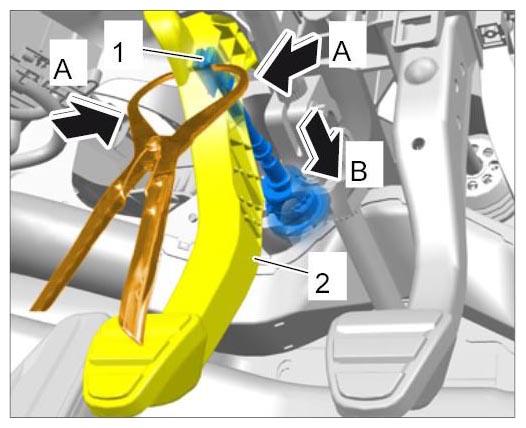

   Fig 4: Disengaging Push Rod

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Release retaining clip for push rod -1-  in the clutch pedal -2-  using a pliers T10005  (-arrows A-  ) and pull it out -arrow B-  .
   2. 2.2. Turn the clutch master cylinder anti-clockwise by approx. 60° -arrow A-  .

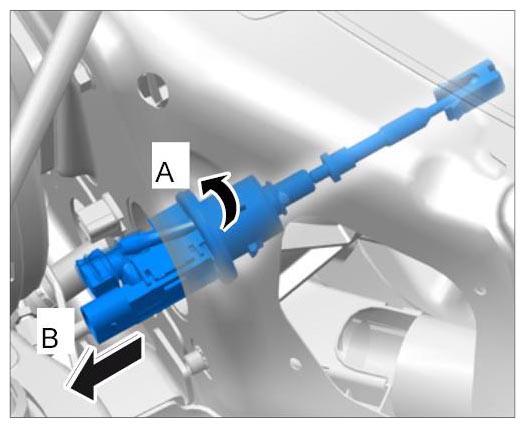

      Fig 5: Loosening Clutch Master Cylinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 2.3. Pull the clutch master cylinder out slightly -arrow B-  .
3. Remove pedal shaft.
   1. 3.1. Remove securing clip -1-  on the pedal shaft -2-  using a screwdriver -arrow A-  .

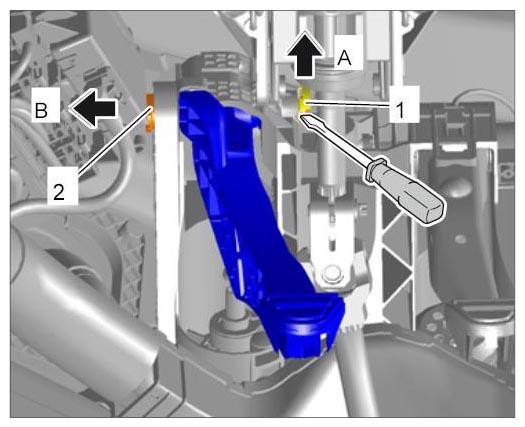

      Fig 6: Removing Pedal Shaft

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Press pedal shaft -2-  through to the left -arrow B-  and remove it.
4. Remove clutch pedal.

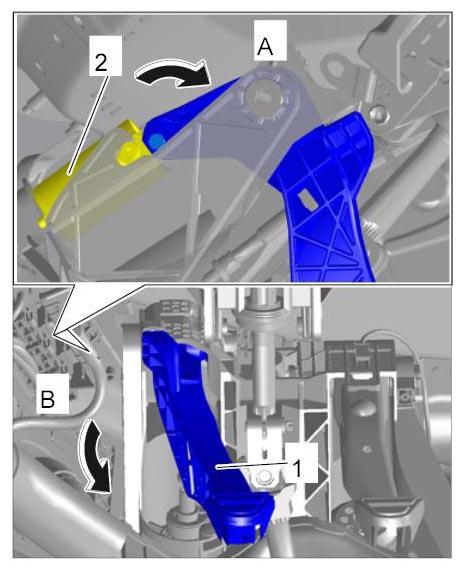

   Fig 7: Removing Clutch Pedal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Pull the clutch pedal -1-  down slightly -arrow A-  until the clutch power spring assembly -2-  disengages.
   2. 4.2. Turn the clutch pedal -1-  and clutch power spring assembly -2-  (-arrow B-  ) and remove it from the pedal console.
