Installing Transmission Oil Cooler

Information

• Replace molded seal.
• Grease molded seal with a light coating of Khyber Syntheso Glep (Part No.: 000.043.204.68).

1. Fit transmission oil cooler.

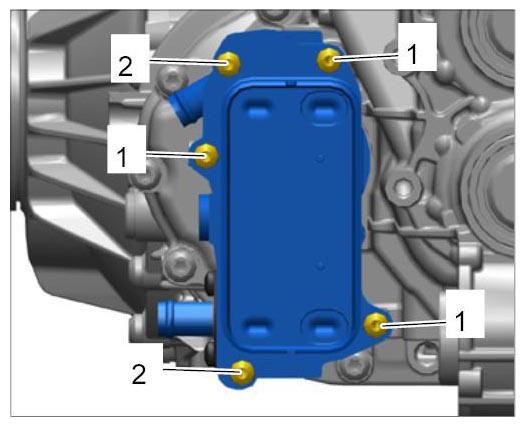

   Fig 1: Identifying Threaded Joint For Transmission Oil Cooler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Position transmission oil cooler.
   2. 1.2. Screw in and tighten screws (M6 x 55) -1-  on the transmission oil cooler. Initial tightening 2.4 Nm (2 ftlb.)
   3. 1.3. Screw in and tighten screws (M6 x 20) -2-  on the transmission oil cooler. Initial tightening 2.4 Nm (2 ftlb.)
2. Secure cable duct for B+ line.

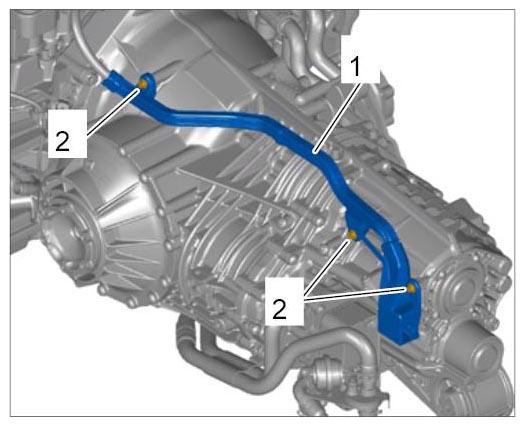

   Fig 2: Identifying Cable Duct For B+ Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Position cable duct -1-  .
   2. 2.2. Screw in and tighten the two screws at the right -2-  on the cable duct. Tightening torque 10 Nm (7.5 ftlb.)
3. Connect coolant hoses.

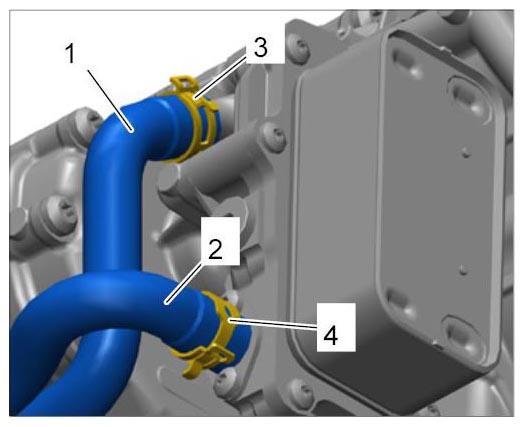

   Fig 3: Identifying Spring Band Clamps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Connect coolant hose -1-  and close the spring band clamp -3-  .
   2. 3.2. Connect coolant hose -2-  and close the spring band clamp -4-  .

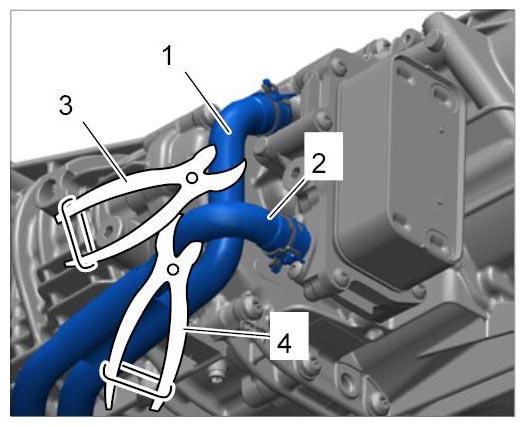

4. Hose clamping pliers Nr.192 -3-  and -4-  must now be removed from the two coolant hoses -1-  and -2-  .
   Fig 4: Connecting Coolant Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
