Installing Cover

WARNING: This page is about a different variant/trim than selected.
  1. Press oil seal -2-  into the upper cover -1-  .
    1. 1.1. Coat the outside of the oil seal with transmission oil.
    2. 1.2. Place cover on assembly aid 9692 -3-  and position it under the service press.
    3. 1.3. Position oil seal together with pressure piece 9234 -4-  on the cover.
    4. 1.4. Carefully press the oil seal as far as it will go into the cover.

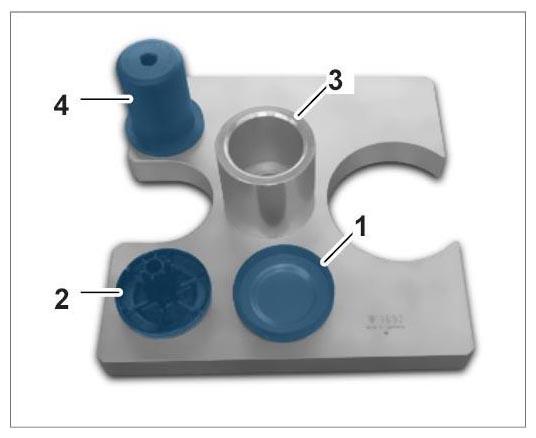

      Fig 1: Pressing Oil Seal
      G09992351Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install upper cover -1-  .
    1. 2.1. Fit the oil seal together with the upper cover on the transmission housing.
    2. 2.2. Tap upper cover into the transmission housing using pressure piece P299 -2-  .
    3. 2.3. The outer edge of the cover must end flush with the transmission housing.
      Fig 2: Installing Cover (Top View)
      G09992352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install lower cover.
    1. 3.1. Tap lower cover into the transmission housing using pressure piece P299 -2-  .
    2. 3.2. The outer edge of the cover must end flush with the transmission housing.

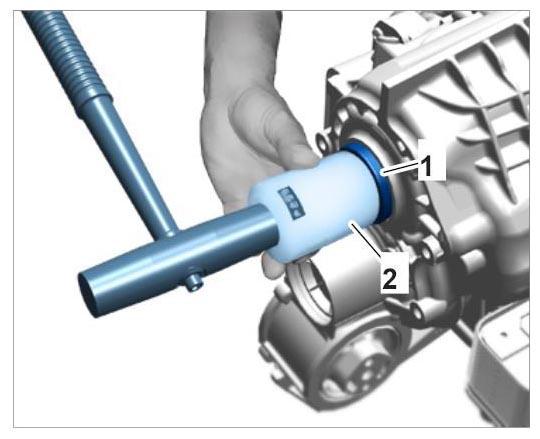

      Fig 3: Installing Cover (Top View)
      G09992353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Position impact absorber -1-  and secure with fastening screws -2-  .

    Tightening torque 30 Nm (22 ftlb.)

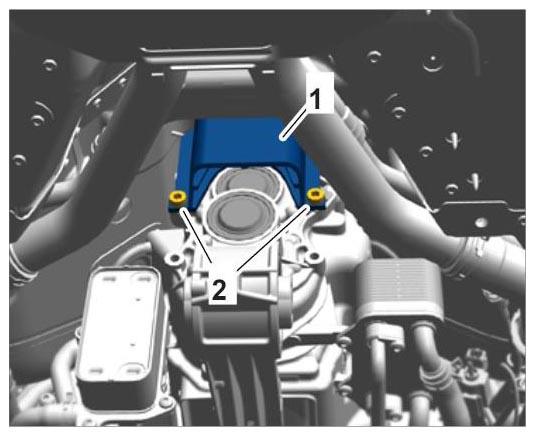

    Fig 4: Identifying Impact Absorber And Screws
    G09992354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install gear support.
    1. 5.1. Position transmission support -C-  and screw on fastening nuts -4-  .
    2. 5.2. Raise the transmission.
    3. 5.3. Position transmission bracket -A-  and hold it.
    4. 5.4. Insert transmission mount screw -1-  through the transmission support and transmission bracket into the transmission mount and screw on fastening nut -2-  .
    5. 5.5. Fit screws -3-  on the transmission bracket.
    6. 5.6. Attach water tube holder -B-  to the transmission bracket.

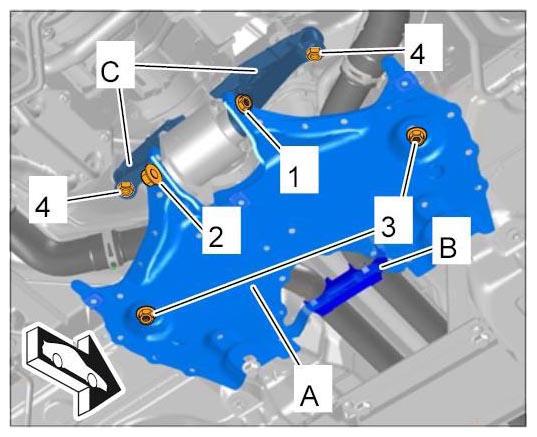

      Fig 5: Fitting Screws On Transmission Bracket
      G09992355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Position brace plate -A-  and tighten screws -1-  .

    Tightening torque 30 Nm (22 ftlb.) +90 Grad

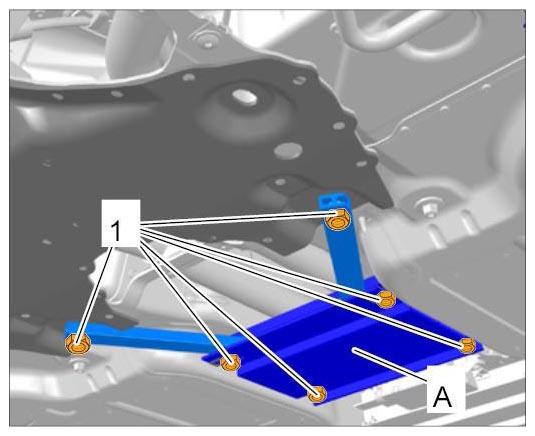

    Fig 6: Identifying Brace Plate And Screws
    G09992356Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Secure gear support.
    1. 7.1. Tighten screws -3-  on the transmission bracket.

      Tightening torque 65 Nm (48 ftlb.)

    2. 7.2. Tighten fastening nuts -4-  on the transmission support.

      Tightening torque 65 Nm (48 ftlb.)

    3. 7.3. Tighten fastening nut -2-  on the transmission mount screw -1-  .

      Tightening torque 120 Nm (89 ftlb.)

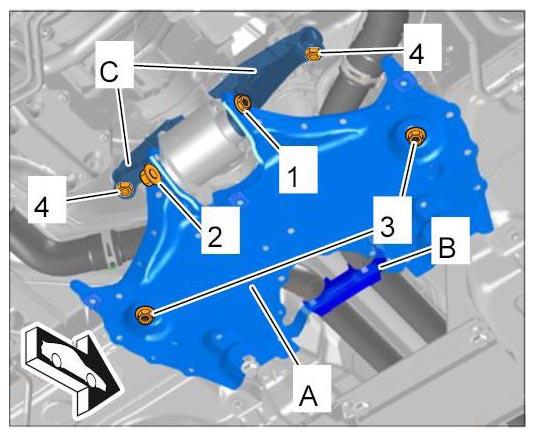

      Fig 7: Securing Gear Support
      G09992357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Lower and remove the transmission jack.
  9. Connect cable plug -1-  for temperature sensor to the transmission.
    1. 9.1. Push on cable plug.
    2. 9.2. Lock the cable plug with the locking element -arrow-  .
    3. 9.3. Attach claw plate holder -2-  .

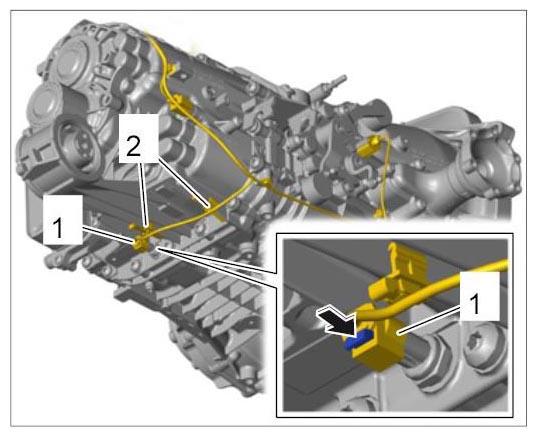

      Fig 8: Connecting Cable Plug For Temperature Sensor
      G09992358Courtesy of PORSCHE CARS NORTH AMERICA, INC.
