Removing Transmission

1. 1.1. Unscrew three external Torx screws (M6 x 16) -2-  . Lay cable duct aside.

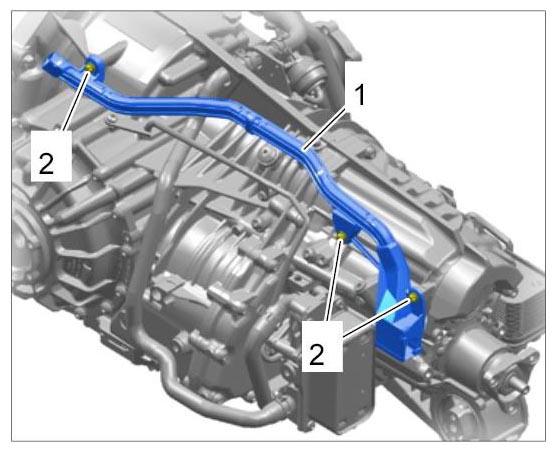

   Fig 1: Identifying Cable Duct For B+ Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Open retaining clip -arrow-  and expose the cable.

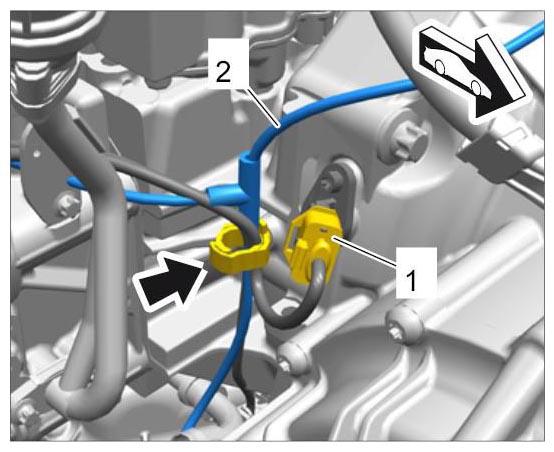

   Fig 2: Locating Speed Sender Cable Plug And Vacuum Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Remove spring clamps -1-  on the plug-in couplings and pull off hoses.
2. 3.2. Re-fit spring clamps.
3. 3.3. Check O-rings for damage and replace if necessary.

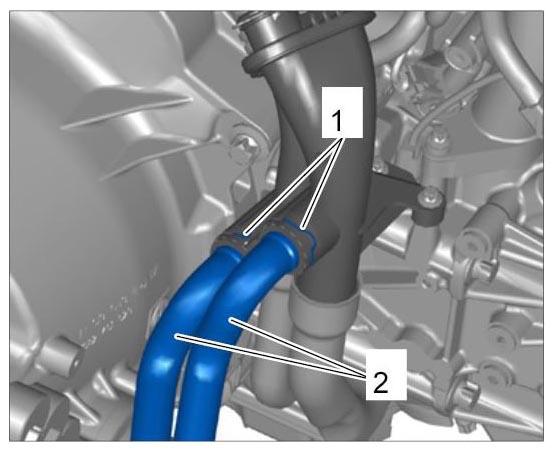

   Fig 3: Identifying Lines On Coolant Collection Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Service crane WW-WSK 1000 WE 1168  must be ready.
2. 4.2. Fit restraining straps as shown in the illustration.

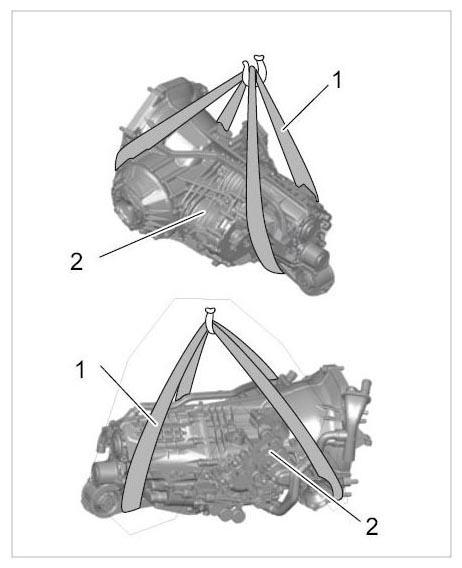

   Fig 4: Fitting Restraining Straps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Observe guidelines for assembly and disassembly

1. 5.1. First remove screws -1 and 2-  , then screws -3 to 6-  .

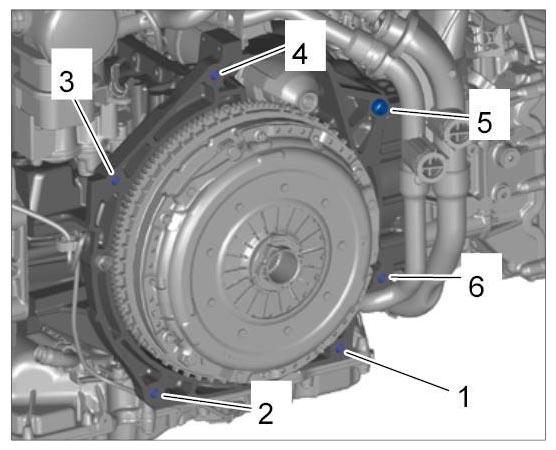

   Fig 5: Identifying Flange Screws with Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
