Installing Transmission

→ Observe specified loosening and tightening sequence!

→ Loosening sequence: Loosen screws from the bottom up.

→ Tightening sequence: Tighten screws from top to bottom.

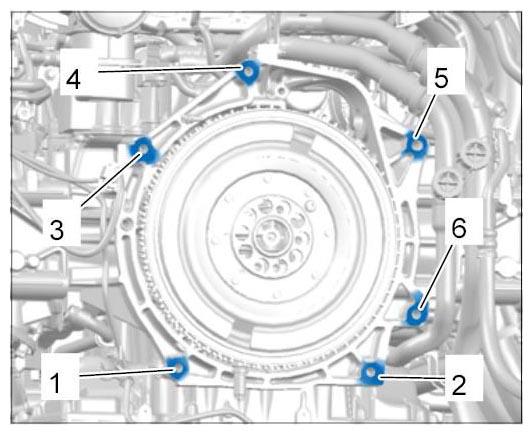

1. Raise and guide in the transmission.
   1. 1.1. Only tighten fastening screws in the following sequence initially: -3, 4, 5, 6, 1, 2-  .

      For the next step, it is important that the screws are not yet tightened!

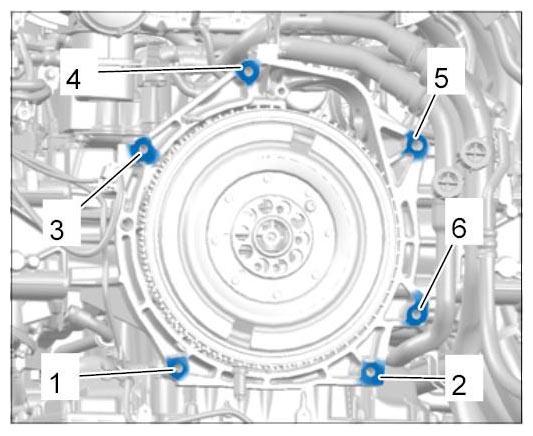

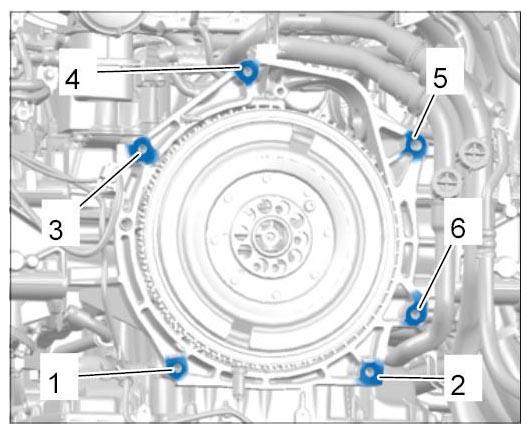

      Fig 1: Identifying Threaded Joint For Transmission Flange On Engine with Tightening Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install clutch slave cylinder.
   1. 2.1. Grease the clutch slave cylinder at the lubrication point -arrows-  using Khyber Syntheso Glep.

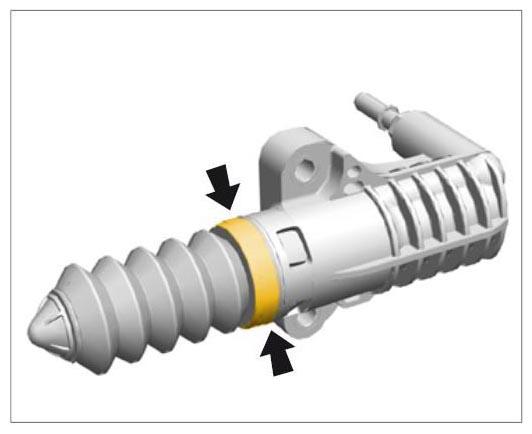

      Fig 2: Locating Lubrication Point On Clutch Slave Cylinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Position the transmission 15 mm away from the engine flange.
   3. 2.3. Position the clutch slave cylinder.
   4. 2.4. Only tighten screws -1-  first.

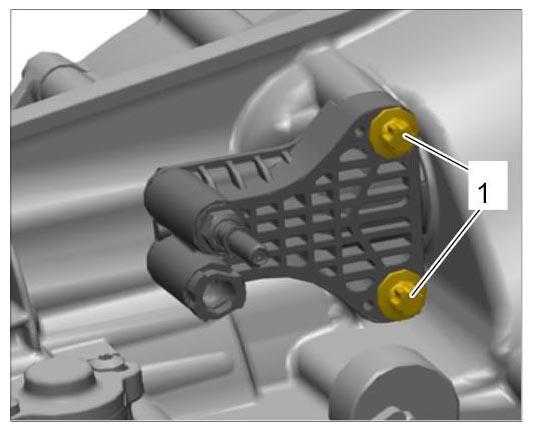

      Fig 3: Identifying Clutch Slave Cylinder Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Mount transmission.
   1. 3.1. Fit screws -3, 4, 5, 6-  first, then -1 and 2-  .
      Fig 4: Identifying Threaded Joint For Transmission Flange On Engine in Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure the clutch slave cylinder.
   1. 4.1. Tighten screws -1-  on the clutch slave cylinder.

      → Tightening torque: 23 Nm (17 ftlb.)

   2. 4.2. Check that the clutch slave cylinder is fitted correctly.

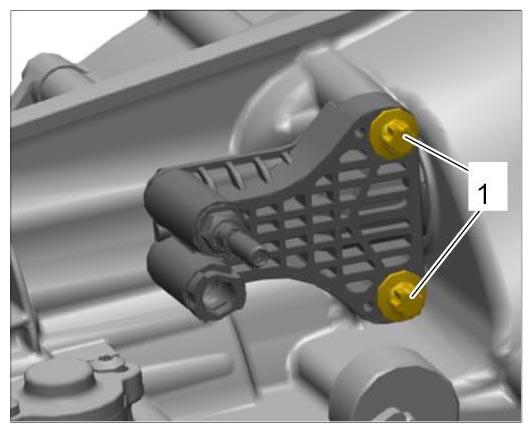

      Fig 5: Identifying Clutch Slave Cylinder and Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Tighten all fastening screws.

   Tightening torque 85 Nm (63 ftlb.)

   Fig 6: Identifying Threaded Joint For Transmission Flange On Engine with Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit cable duct for B+ line.
   1. 6.1. Position cable duct -A-  .
   2. 6.2. Fit and tighten external Torx screws -1-  .

      Tightening torque 10 Nm (7.5 ftlb.)

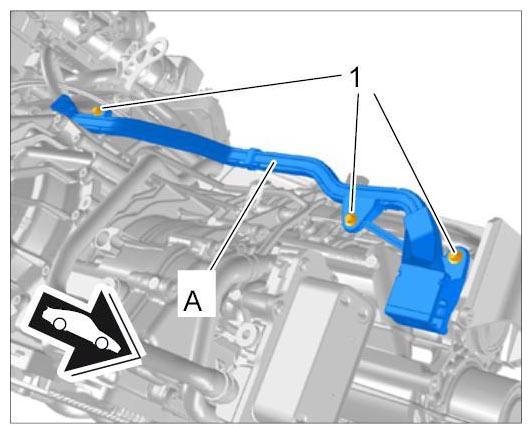

      Fig 7: Positioning Cable Duct

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Fit disc valve holder and connect vacuum line.
   1. 7.1. Fit disc valve holder and screw in and tighten screw -1-  on the holder.

      Tightening torque 13 Nm (9.5 ftlb.)

   2. 7.2. Connect vacuum line for disc valve -arrows-  .

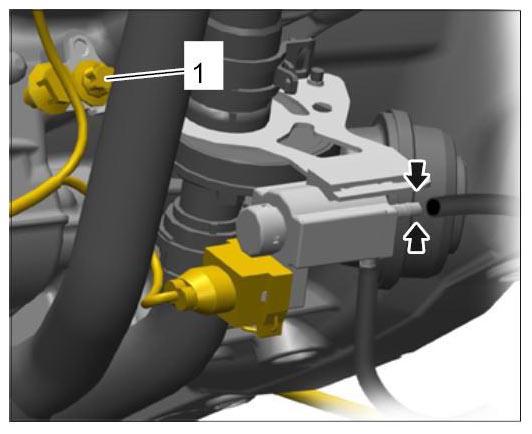

      Fig 8: Connecting Vacuum Line For Disc Valve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Fit coolant hoses.

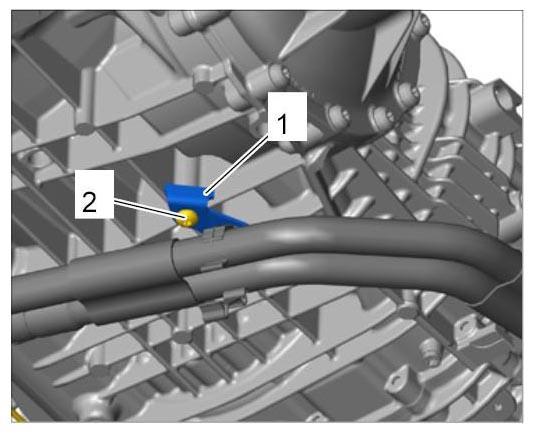

   1. 8.1. Fit holder -1-  for coolant hoses using screw -2-  .

      Tightening torque 13 Nm (9.5 ftlb.)

      Fig 9: Identifying Holder For Coolant Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

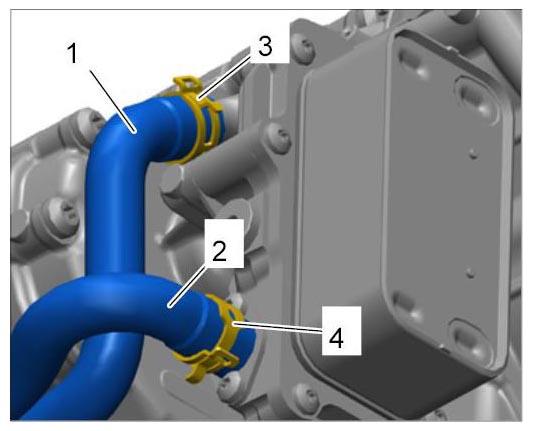

   2. 8.2. Connect coolant hoses -1 and 2-  and close spring band clamps -3 and 4-  .
      Fig 10: Identifying Spring Band Clamps

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 8.3. Remove hose clamping pliers -3 and 4-  .

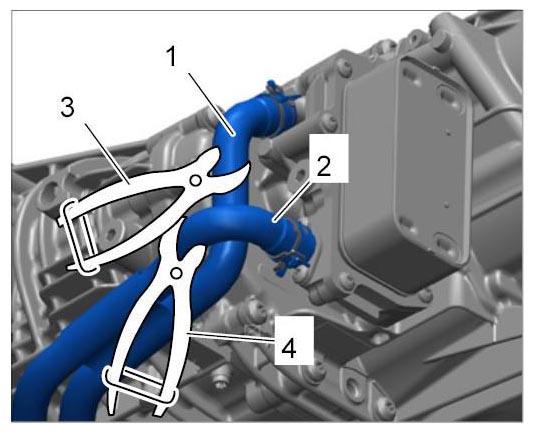

      Fig 11: Remove Coolant Hose

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Connect cable plug for RPM sensor -1-  .

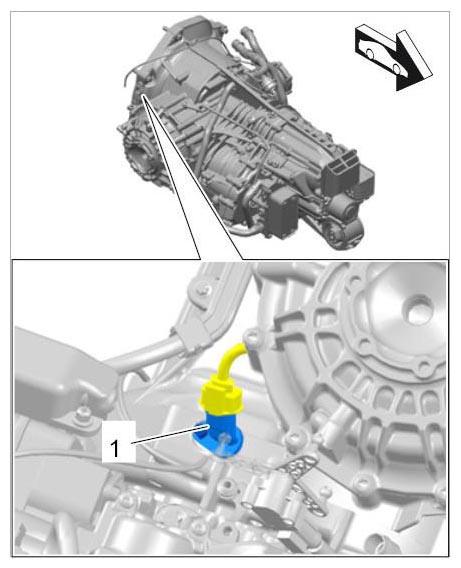

   Fig 12: Connecting Cable Plug For RPM Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Install transmission brackets.
    1. 10.1. Position transmission support -C-  and screw nuts -4-  onto the threaded bolts.

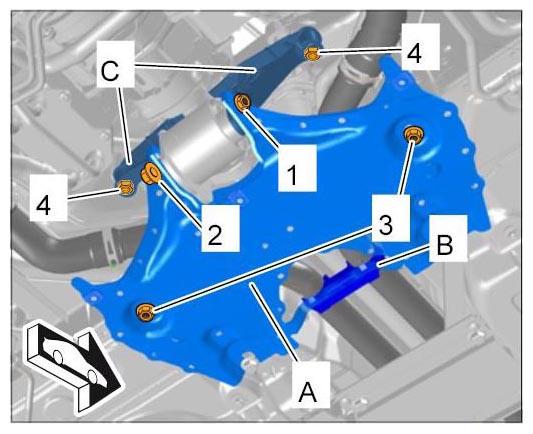

       Fig 13: Positioning Transmission Support

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 10.2. Raise the transmission.
    3. 10.3. Position transmission bracket -A-  and hold it.
    4. 10.4. Fit transmission mount screw -1-  and only tighten nut -2-  initially.
    5. 10.5. Connect coolant pipe holder -B-  to the transmission bracket.
11. Install brace plate and transmission bracket.
    1. 11.1. Position brace plate -A-  and tighten all screws -1-  .

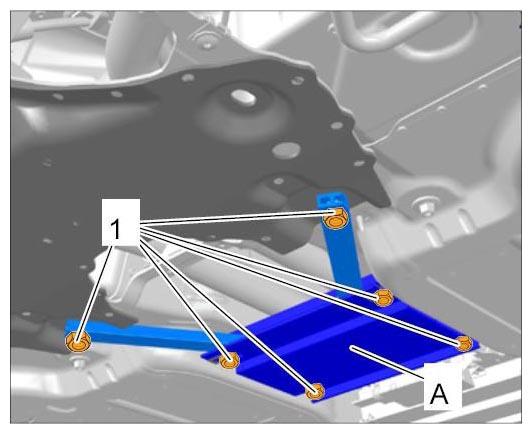

       Fig 14: Identifying Brace Plate Screws

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 11.2. Fit screws -3-  on the transmission bracket.
       Fig 15: Fitting Screws On Transmission Bracket

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 11.3. Tighten screws in the brace plate.

       Tightening torque 30 Nm (22 ftlb.) +90 Grad

    4. 11.4. Tighten screws -3-  in the transmission bracket.

       Tightening torque 65 Nm (48 ftlb.)

    5. 11.5. Tighten nuts -4-  used to secure the transmission support -C-  to the body.

       Tightening torque 65 Nm (48 ftlb.)

    6. 11.6. Screw on nut with the transmission mount screw -1-  .

       Tightening torque 120 Nm (89 ftlb.)

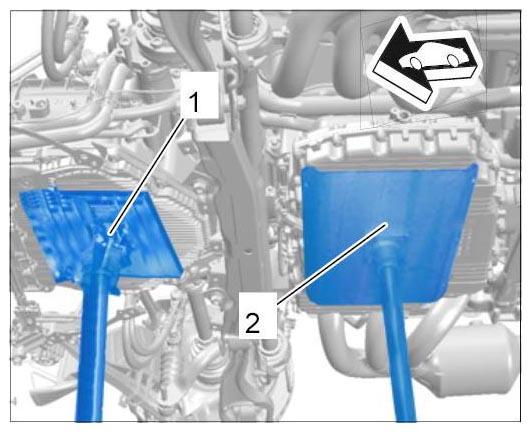

12. Remove transmission jack from under the transmission and engine.
    1. 12.1. Loosen restraining strap.
    2. 12.2. Lower and remove transmission jack -1 and 2-  .
       Fig 16: Removing Transmission Jack

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Connect cable plug for temperature sensor to the transmission.
    1. 13.1. Connect cable plug -1-  .
    2. 13.2. Push in locking element -arrow-  .
    3. 13.3. Fit sheetmetal holder -2-  .

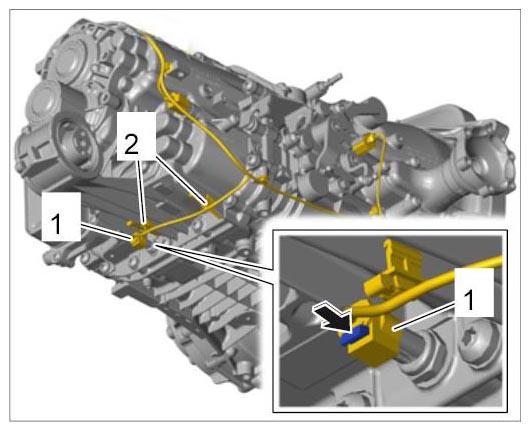

       Fig 17: Connecting Cable Plug For Temperature Sensor

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

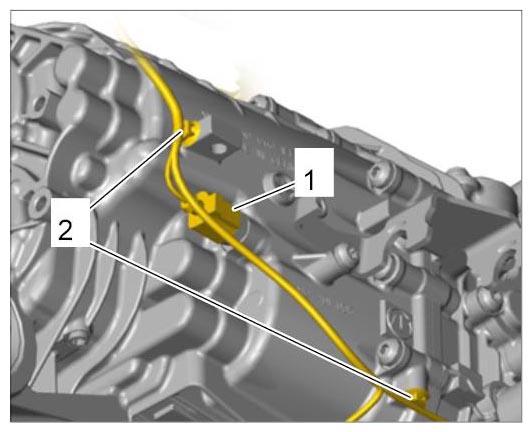

14. Connect cable plug for reverse gear to the transmission.
    1. 14.1. Connect cable plug -1-  .
    2. 14.2. Fit retaining clip -2-  .
       Fig 18: Identifying Cable Plug For Reverse Gear Switch And Retaining Clip

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Connect cable plug for control valve and neutral gear sensor.
    1. 15.1. Connect cable plug -1 and 2-  .
    2. 15.2. Fit retaining clip -3-  on the cast rib.
    3. 15.3. Fit sheetmetal holder -4-  .

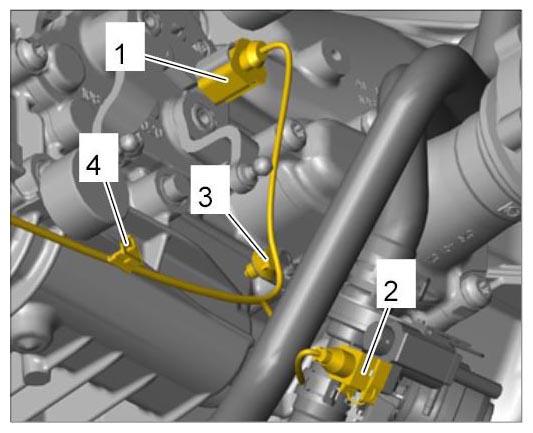

       Fig 19: Identifying Cable Plugs, Clip And Sheetmetal Holder

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Secure shift and selector cables -3-  to the transmission.
    1. 16.1. Fit shift and selector cables -3-  on the support -2-  .
    2. 16.2. Press ball joints -1-  onto the exterior shift mechanism.

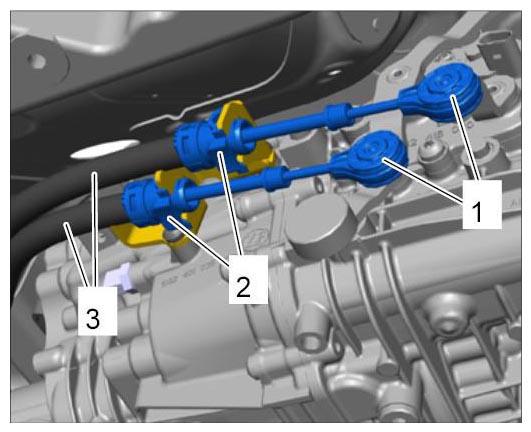

       Fig 20: Identifying Shift And Selector Cables On Transmission

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
17. Fit drive shafts on the transmission side.
    1. 17.1. Fit and tighten screws -arrows-  between the drive shaft and transmission flange on the plates -1-  .

       Counter at the wheel. Get another person to help if necessary!

       Tightening torque 90 Nm

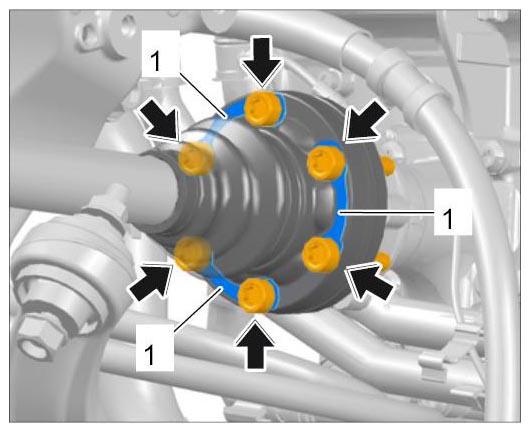

       Fig 21: Fitting Drive Shafts With Screws

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
18. Install diagonal braces.
    1. 18.1. Position diagonal braces -A-  .
    2. 18.2. Fit and tighten screws -1-  on the mounting for the longitudinal arm.

       Tightening torque 65 Nm (48 ftlb.)

    3. 18.3. Fit and tighten screws -2-  on the body.

       Initial tightening 90 Nm (67 ftlb.) Final tightening +90°

       On the Cabriolet:  Diagonal brace on outer body

       Tightening torque 30 Nm (22 ftlb.)

    4. 18.4. Fit and tighten screws -3-  on the rear-axle cross member.

       Initial tightening 30 Nm (22 ftlb.) Final tightening +90°

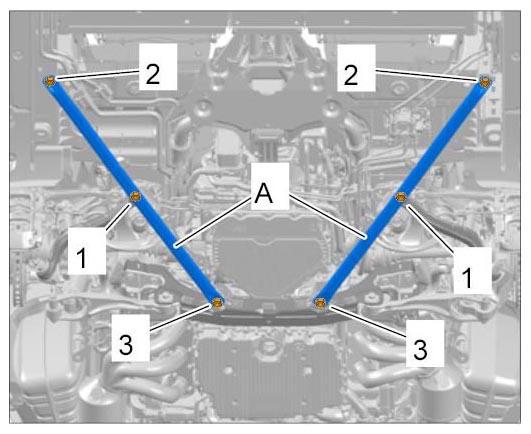

       Fig 22: Identifying Diagonal Braces And Screws

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
19. Fit center underbody panelling.
    1. 19.1. Bend up underbody panelling.
    2. 19.2. Screw in and tighten the four rear screws on the underbody panelling.
