Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Disengage shift and selector cables on manual transmission.
    1. 1.1. Lever off ball joints -1-  on the exterior shift mechanism using disassembly tool Nr.21  .
    2. 1.2. Release shift and selector cables -3-  at the support -2-  and pull them out.

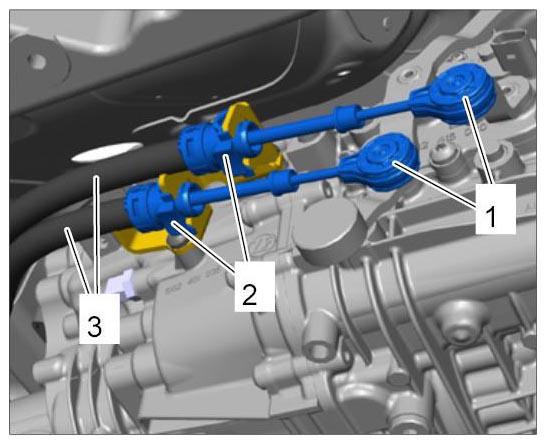

      Fig 1: Identifying Shift And Selector Cables On Transmission
      G09992282Courtesy of PORSCHE CARS NORTH AMERICA, INC.
