Installing Shift Cover

WARNING: This page is about a different variant/trim than selected.

Fit a new seal -1- .

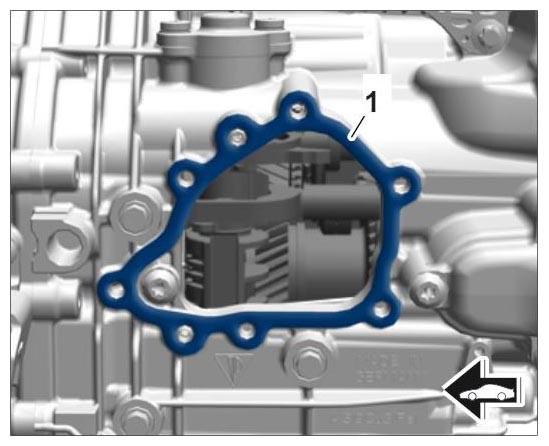

Fig 1: Identifying Shift Cover Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit shift cover with new screws.
Information
- Aluminum screws must always be replaced.
- Aluminum screws are secured using the yield-point-controlled method.
- Use special tool electronic torque wrench 9768 for this.
- To ensure that the screws are tightened uniformly, the specified tightening setting "light, medium or hard" must be used.
Tighten screws for shift cover according to the specified tightening sequence -1 to 6- .
1. 3.1. Initial tightening of aluminum screws at "medium" setting:
  → Initial tightening: 6 Nm (4.5 ftlb.)
2. 3.2. Final tightening using the yield-point-controlled tightening method with special tool electronic torque wrench 9768.

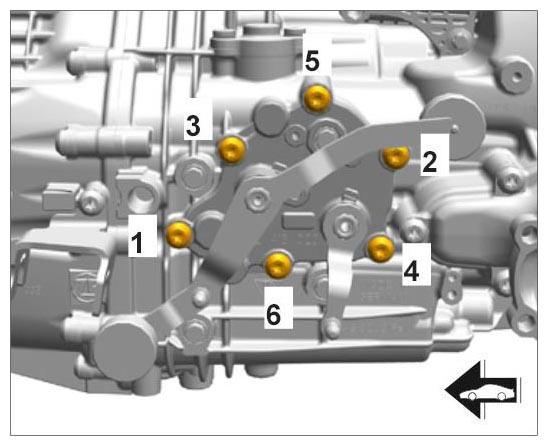

  Fig 2: Shift Cover Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit neutral gear sensor with new screws.
→ Tightening torque: 5.5 Nm (4 ftlb.)
