Removing Shift And Selector Cables

Information

• Handle shift and selector cables with care. Do not bend or kink the cables as this can damage them over time.

Information

• Do not kink or roll up shift and selector cables.
• Only store shift and selector cables in elongated position (do not roll up).

1. Disconnect shift and selector cables at the center tunnel.

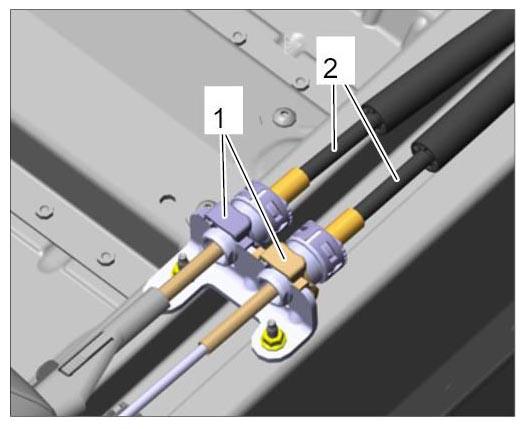

   1. 1.1. Release shift and selector cables -2-  at the support -1-  and pull them out.
      Fig 1: Identifying Shift And Selector Cables On Centre Tunnel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Disconnect shift and selector cables on manual transmission.

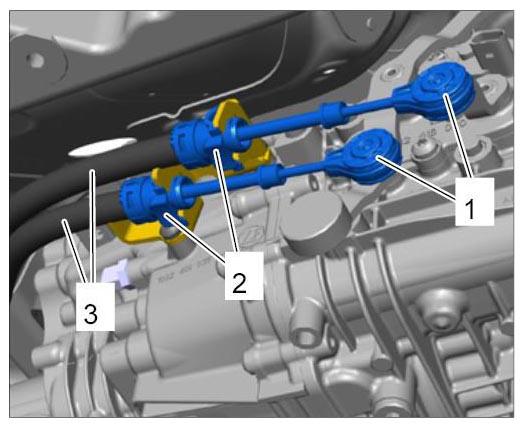

   1. 2.1. Lever off ball joints -1-  on the exterior shift mechanism using disassembly tool Nr.21  .
   2. 2.2. Release shift and selector cables -3-  at the support -2-  and pull them out.
      Fig 2: Loosening Shift And Selector Cables At Transmission

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

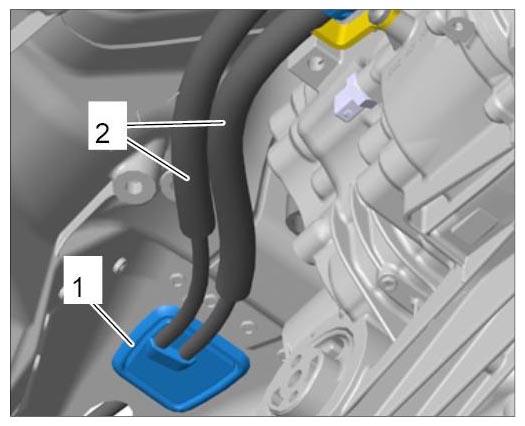

3. Press rubber sleeve -1-  out of the body guide and remove shift and selector cables -2-  from the vehicle by guiding them downwards.
   Fig 3: Identifying Rubber Sleeve For Shift And Selector Cables

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
