Removing Gearshift Bracket

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect shift and selector cables from the gearshift bracket.
    1. 1.1. Release bayonet locks -1-  (-arrows-  ) and unclip shift and selector cables -2-  .

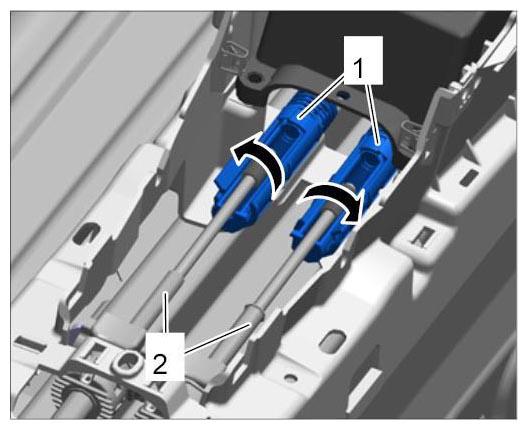

      Fig 1: Turning Bayonet Lock For Shift And Selector Cables
      G09992269Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws on the gearshift bracket -1-  and remove gearshift bracket -2-  .

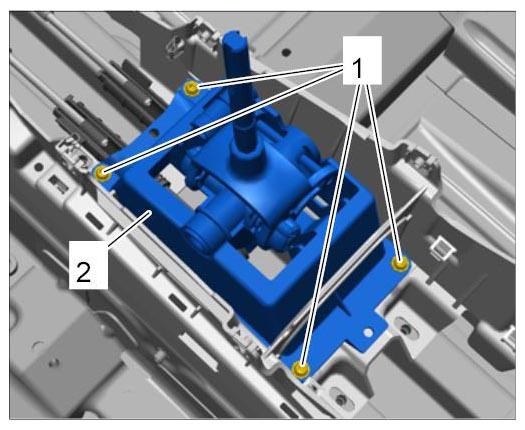

    Fig 2: Identifying Gearshift Bracket
    G09992270Courtesy of PORSCHE CARS NORTH AMERICA, INC.
