Adjusting Shift And Selector Cables

WARNING: This page is about a different variant/trim than selected.
  1. Make sure that the transmission is in neutral.
  2. Locking bridge 9846 -1-  must be fitted on the gearshift bracket -2-  .

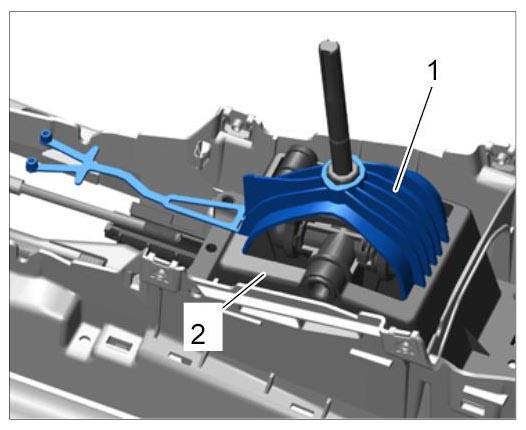

    Fig 1: Identifying Shift And Selector Cable Adjustment Position
    G09992272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in shift and selector cables -1-  and lock bayonet locks -2-  (-arrows-  ).

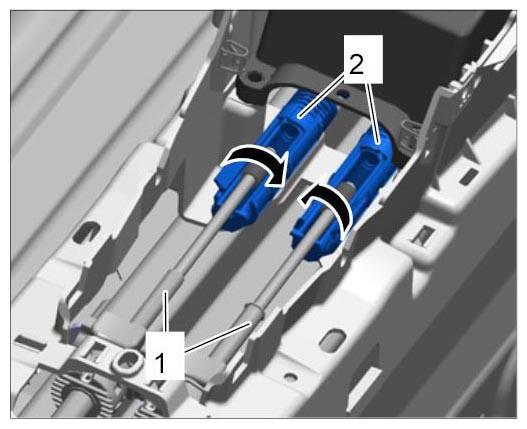

    Fig 2: Turning Bayonet Lock For Shift And Selector Cables
    G09992273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
