Removing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.
  1. Unclip retaining frame for the leather sleeve in an upward direction using an assembly wedge.

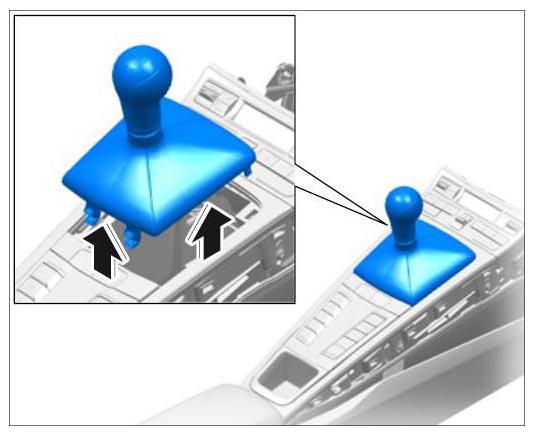

    Fig 1: Removing Leather Sleeve
    G09992264Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn the leather sleeve anti-clockwise as far as it will go and pull up the shift-lever knob.

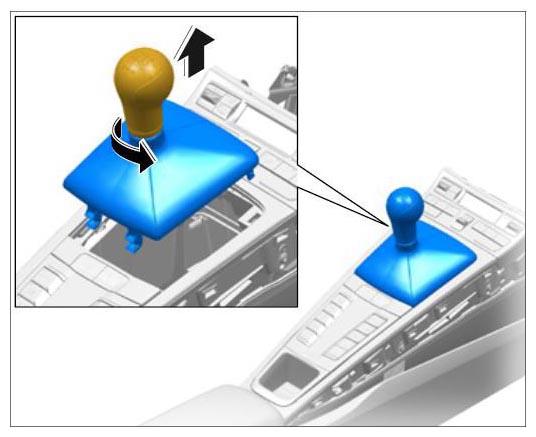

    Fig 2: Turning Leather Sleeve And Shift-Lever Knob
    G09992265Courtesy of PORSCHE CARS NORTH AMERICA, INC.
