Topping Up Transmission Oil

WARNING: This page is about a different variant/trim than selected.
  1. Top up transmission oil.

    Observe specified filling capacities!

    1. 1.1. Clean oil drain plug -2-  and screw in with a new sealing ring. Tightening torque 35 Nm (26 ftlb.)
    2. 1.2. Use manual metering pump WE 1372  to fill in transmission oil up to the lower edge of the filler opening.
    3. 1.3. Clean oil filler screw -1-  and screw in with a new seal. Tightening torque 35 Nm (26 ftlb.)

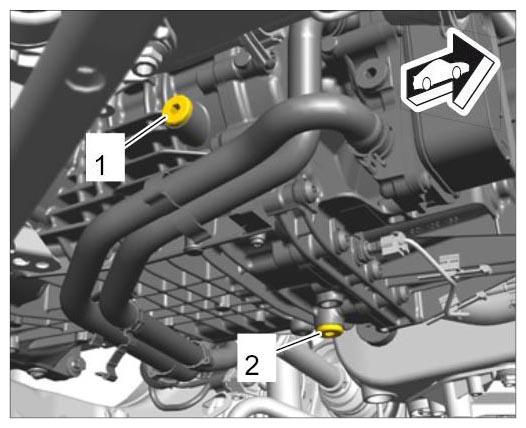

      Fig 1: Removing Screw Plugs On Transmission
      G09992263Courtesy of PORSCHE CARS NORTH AMERICA, INC.
