Removing and installing control module for seat heating

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The control module for the seat is located on the right side for the driver's seat and on the left side for the passenger's seat.

-A- Backrest plug connection. See Fig 1 .
-B- Seat cushion plug connection. See Fig 1 .
-C- Plug connection for seat heating control module. See Fig 1 .
-D- Expanding rivet. See Fig 1 .

Removing control module for seat heating. See REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
1. Press the pin into the expanding rivet -D- with a thin screwdriver for example and remove the holder together with the rivet and the control module. See Fig 1 .
2. Pull control module off the plug -C- . See Fig 1 .

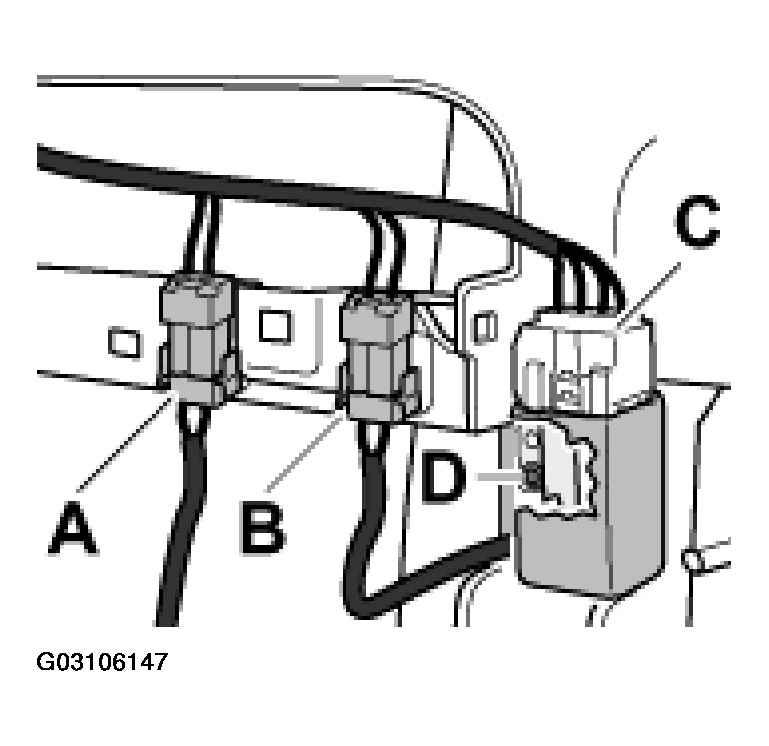

Fig 1: Removing/Installing Control Module For Seat Heating

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing control module for seat heating
1. Push control module onto the plug -C- . See Fig 1 .
2. Fix the control module and holder with the expanding rivet -D- and press the pin in the rivet. See Fig 1 .
