Installing lumbar support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
LUMBAR SUPPORT INSTALLING PROCEDURE

No. Procedure Instructions

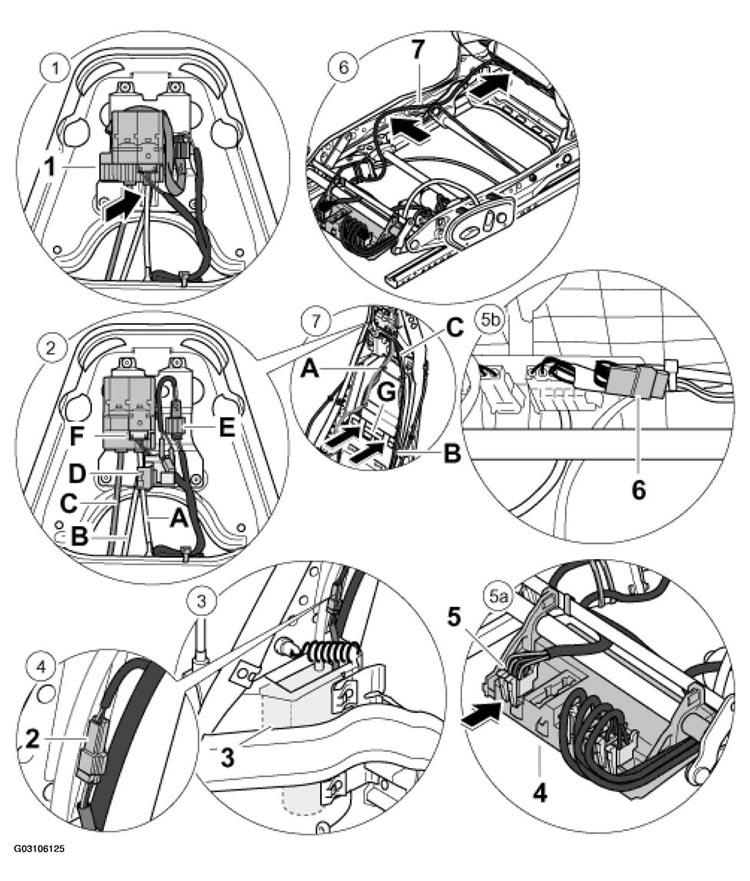

7 Lumbar support -G-  . See Figure . Insert lumbar support -G-arrow-B-C-  . See Figure .
1 Air hose -B, C-  . See Figure . Connect air hose -B, C-  . See Figure .
  Installing covering for backrest. See INSTALLING COVERING FOR THE FRONT BACKREST FRAME .
  Installing front seat See REMOVING AND INSTALLING FRONT SEAT  .
