Removing electric motor for seat adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

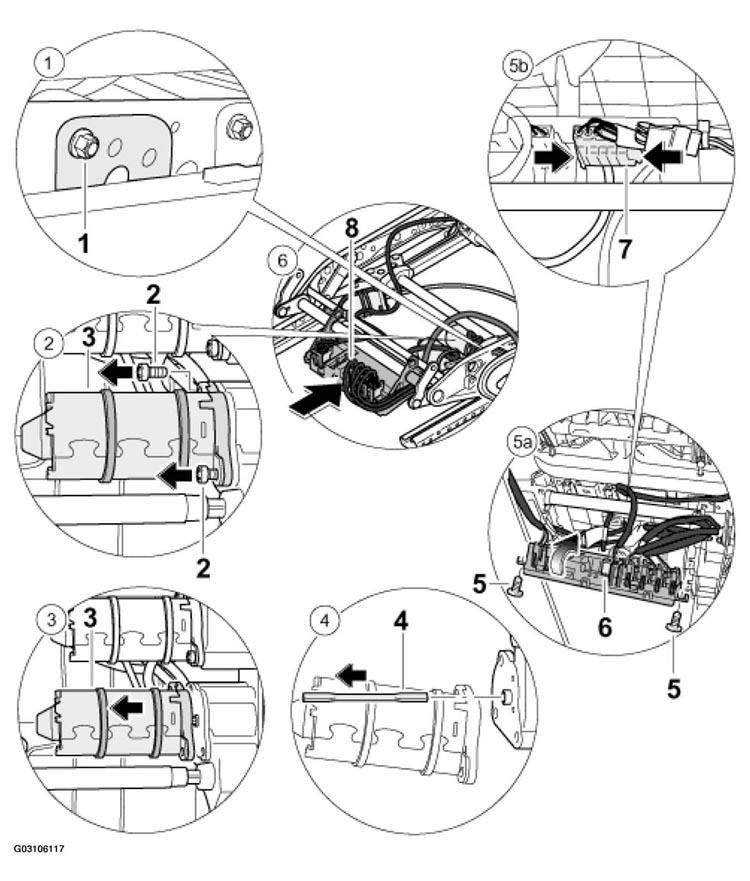

Fig 1: Removing Electric Motor For Seat Adjustment
G03106117Courtesy of PORSCHE OF NORTH AMERICA, INC.
ELECTRIC MOTOR FOR SEAT ADJUSTMENT REMOVING PROCEDURE

No. Procedure Instructions
  Removing front seat See REMOVING AND INSTALLING FRONT SEAT  .
1 Lock nut -1-  . See Fig 1 . Unscrew.
2 Fastening screws -2-  . See Fig 1 . Unscrew.
3 Electric motor -3-  . See Fig 1 . Remove.
4 Input shaft -4-  . See Fig 1 . Remove and check for damage.
5a Control module -6-  . See Fig 1 . Unscrew fastening screws -5-6-arrow-  . See Fig 1 .
5b Plug connection -7-  . See Fig 1 . Press plugs together in -direction of arrow-  . See Fig 1 .
6 Electrical line Cut the tie wrap using side cutters, follow cable routing and pull off the plug -8-  . See Fig 1 .
