Installing electric motor for seat adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
ELECTRIC MOTOR FOR SEAT ADJUSTMENT INSTALLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

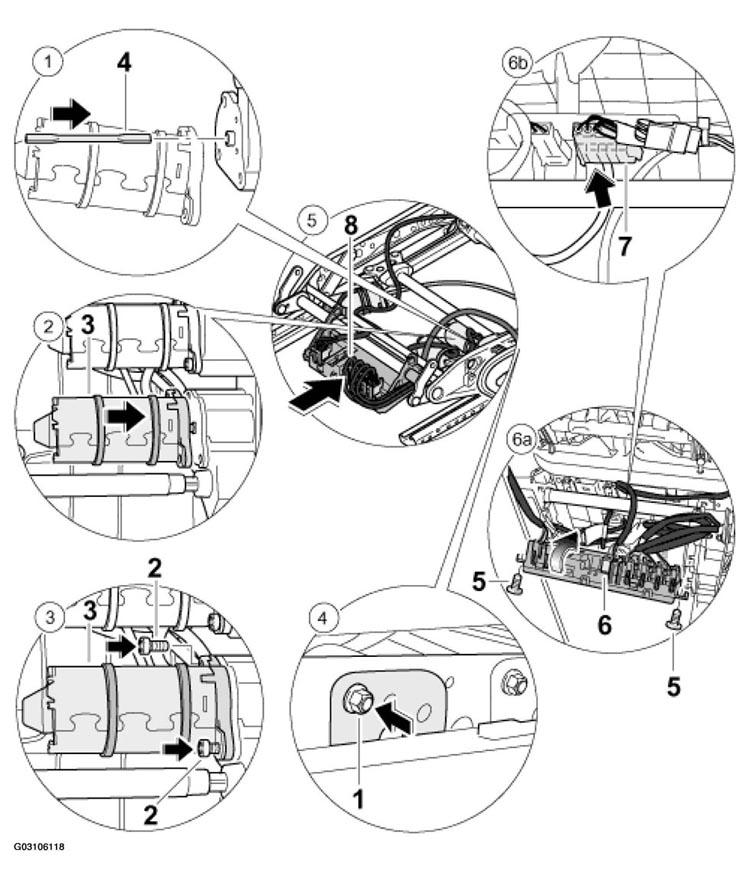

| 1 | Input shaft -4- . See Fig 1 . | Insert the input shaft -4- . See Fig 1 . |
| 2 | Electric motor -3- . See Fig 1 . | Push motor -3- . See Fig 1 . |
| 3 | Fastening screws -2- . See Fig 1 . | Position electric motor -3-2- . See Fig 1 . |
| 4 | Lock nut | Tighten. Tightening torque: 7 Nm (5.0 ftlb.) |
| 5 | Plug -8- . See Fig 1 . | Observe line routing and push in plug -8- . See Fig 1 . |
| 6a | Control module -6- . See Fig 1 . | Engage control module -6-5- . See Fig 1 . |
| 6b | Plug connection -7- . See Fig 1 . | Push crimp sockets into the plug -7-7- . See Fig 1 . |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
