Removing electric motor for rear seat height adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
ELECTRIC MOTOR FOR REAR SEAT HEIGHT ADJUSTMENT REMOVING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Removing front seat | See REMOVING AND INSTALLING FRONT SEAT . | |

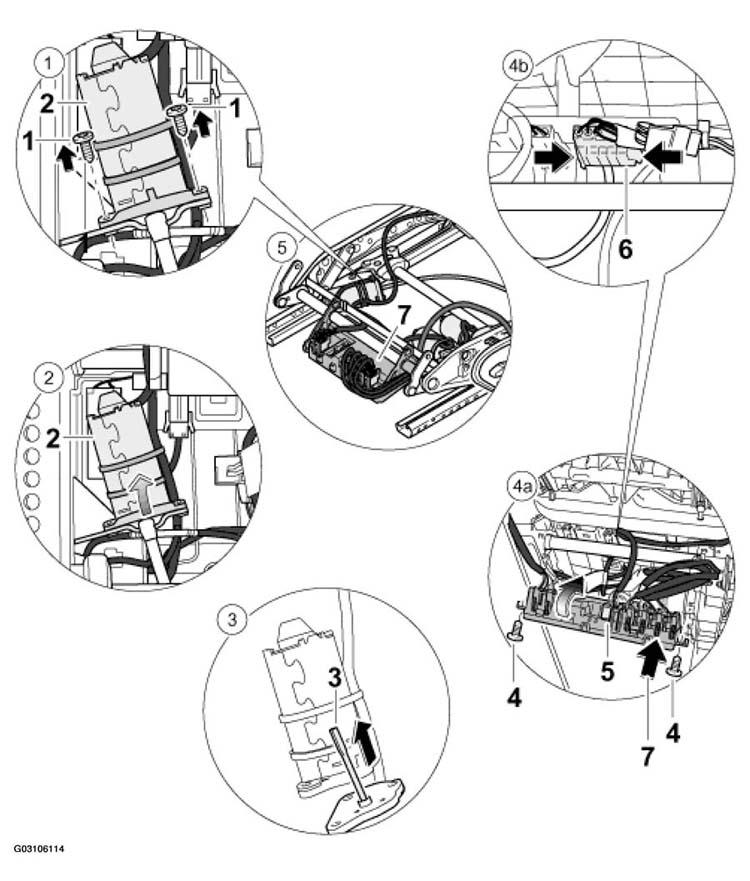

| 1 | Fastening screws -1- . See Fig 1 . | Unscrew. |
| 2 | Electric motor -2- . See Fig 1 . | Remove in -direction of arrow- . See Fig 1 . |
| 3 | Input shaft -3- . See Fig 1 . | Pull out shaft -3- . See Fig 1 . |
| 4a | Control module -5- . See Fig 1 . | Unscrew both fastening screws -4-5-arrow 7- . See Fig 1 . |
| 4b | Plug connection -6- . See Fig 1 . | Press plugs -6-direction of arrow- . See Fig 1 . |
| 5 | Electrical line | Cut the tie wrap with side cutters, follow the cable routing and remove completely. |
