Installing electric motor for rear seat height adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
ELECTRIC MOTOR FOR REAR SEAT HEIGHT ADJUSTMENT INSTALLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

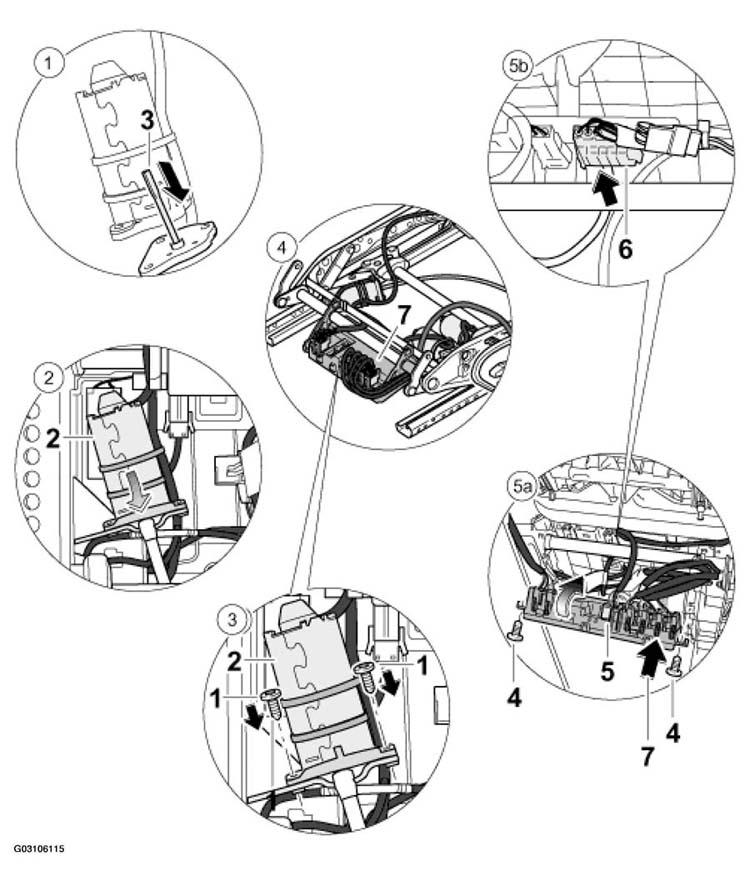

| 1 | Input shaft -3- . See Fig 1 . | Insert the input shaft -3-arrow- . See Fig 1 . |
| 2 | Electric motor -2- . See Fig 1 . | Push motor -2- . See Fig 1 . |
| 3 | Fastening screws -1- . See Fig 1 . | Position electric motor -2-1- . See Fig 1 . |
| 4 | Line and plug connection -7- . See Fig 1 . | Observe line routing. |
| 5a | Seat memory control module -5- . See Fig 1 . | Insert plug -arrow 7-5-4- . See Fig 1 . |
| 5b | Plug connection -6- . See Fig 1 . | Push crimp sockets into the plug -6- . See Fig 1 . |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
