Removing electric motor for backrest adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

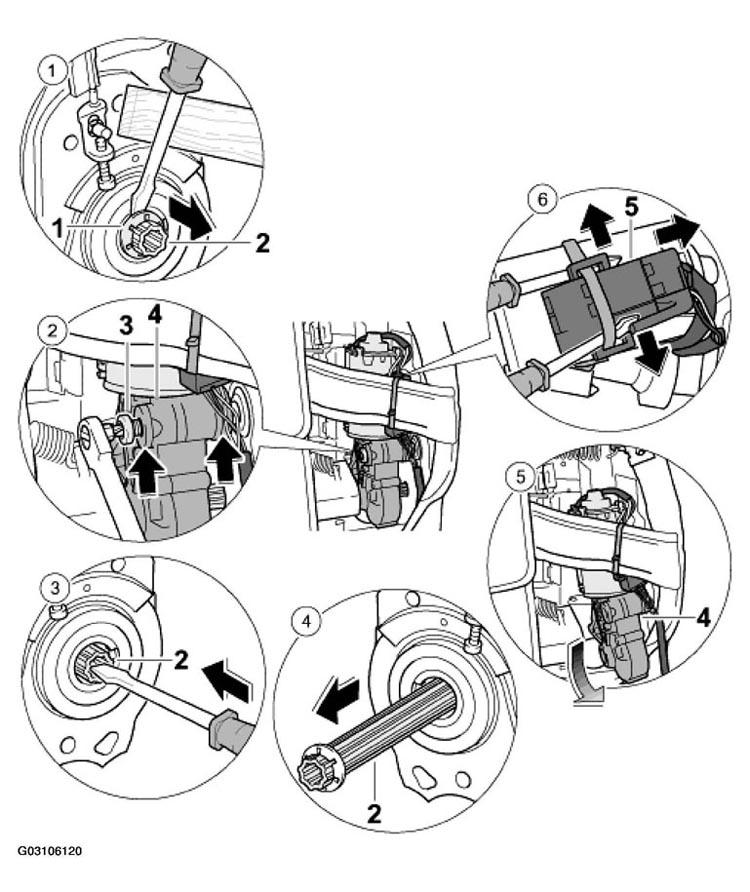

Fig 1: Removing Electric Motor For Backrest Adjustment
G03106120Courtesy of PORSCHE OF NORTH AMERICA, INC.
ELECTRIC MOTOR FOR BACKREST ADJUSTMENT REMOVING PROCEDURE

No. Procedure Instructions
  Removing front seat See REMOVING AND INSTALLING FRONT SEAT  .
  Removing covering for front backrest See REMOVING COVER FOR THE FRONT BACKREST FRAME .
1 Clamping washer -1-  . See Fig 1 . Lever the clamping washer -1-2-  . See Fig 1 .
2 Undoing fastening screws -3-  . See Fig 1 . Unscrew fastening screw -3-4-  . See Fig 1 .
3 Input shaft -2-  . See Fig 1 . Push input shaft -2-  . See Fig 1 .
4 Input shaft -2-  . See Fig 1 . Pull out input shaft -2-  . See Fig 1 .
5 Backrest motor -4-  . See Fig 1 . Remove backrest motor downward -direction of arrow-  . See Fig 1 .
6 Electrical plug connection -5-  . See Fig 1 . Push both locking tabs of the plug connection outwards using a screwdriver and pull the plug -5-  . See Fig 1 .
