Installation notes on door film

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Installation note on door film for vehicles without side airbag

The spare door film comes with 4 holes for fastening the side airbag. For vehicles without airbag, the holes in the door film -2- must be covered with commercially available adhesive tape -1-

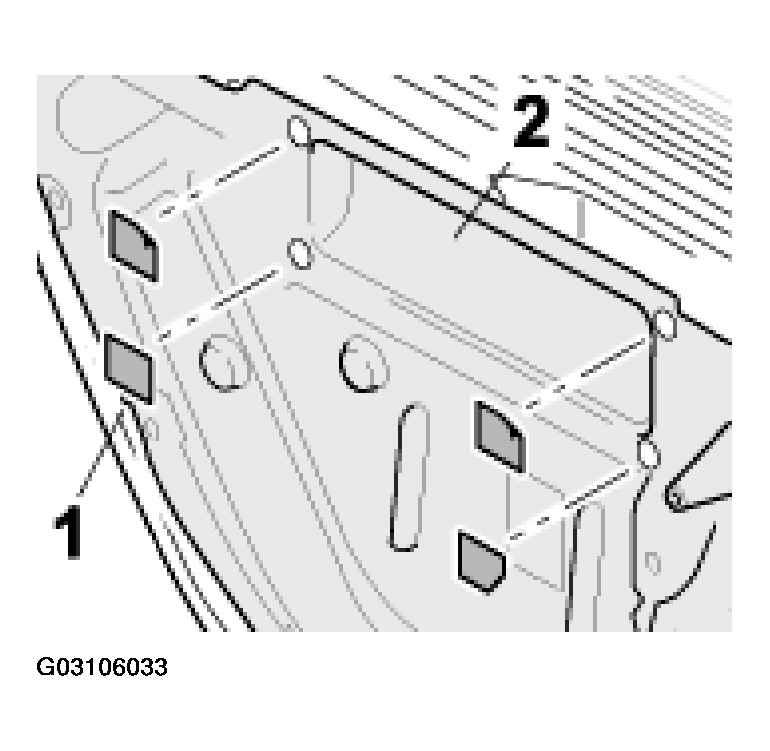

Fig 1: Holes In Door Film Covered With Adhesive Tape (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Notes on the installation of partly detached door film

Door films which have become completely detached or are torn must always be replaced.

In the case of door films which have become partly detached at the top and side, the detached films must be reattached using a butyl sealing cord.

Beside the original point of attachment, attach a butyl cord -2- to the area where the door film -1- is detached, and firmly affix.

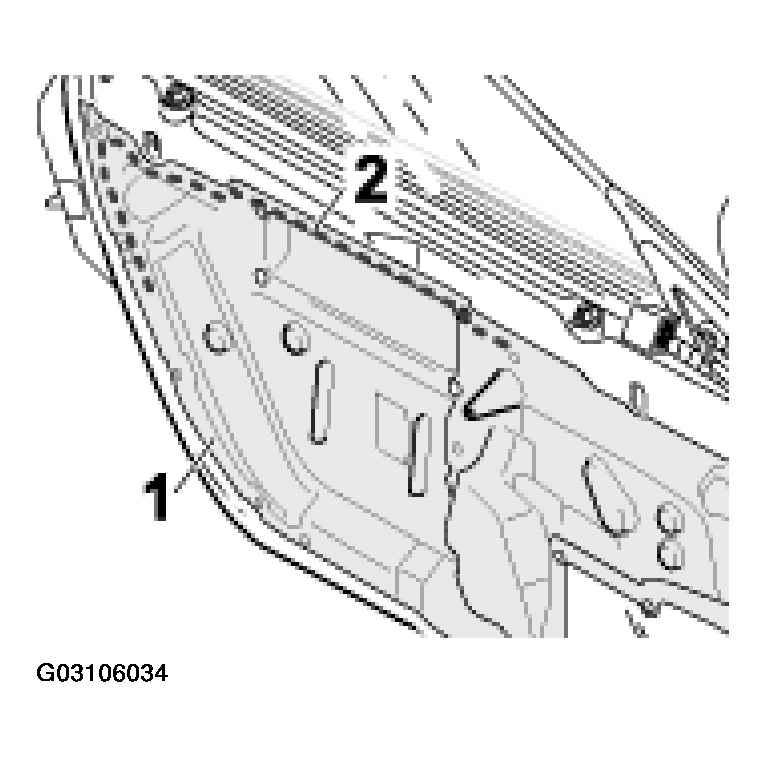

Fig 2: Attaching Butyl Cord To Area Of Door Film (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

See MATERIALS AND TOOLS .
