Additional assembly notes on bowden cable variant A and inner door handle: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Bowden cables of variant A and inner door handles of variant A can only be installed together.

Up to Veh. Ident. No. bowden cable of variant A

NOTE:

Bowden cable of variant A is to be installed in vehicles up to Veh. Ident. No.
99 ZXS 60 0957 RoW
99 ZXS 60 0512 RoW
99 9XS 60 3889 USA
99 1XS 60 2307 USA

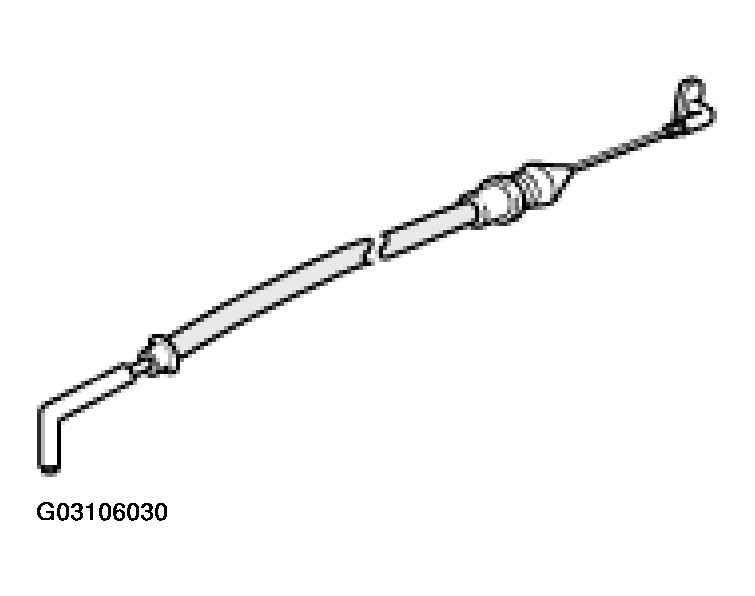

Fig 1: Identifying Bowden Cable - Variant A (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Up to Veh. Ident. No. inner door release of variant A

NOTE:

Inner door release of variant A is to be installed in vehicles up to Veh. Ident. No.
99 ZXS 60 0957 RoW
99 ZXS 60 0512 RoW
99 9XS 60 3889 USA
99 1XS 60 2307 USA

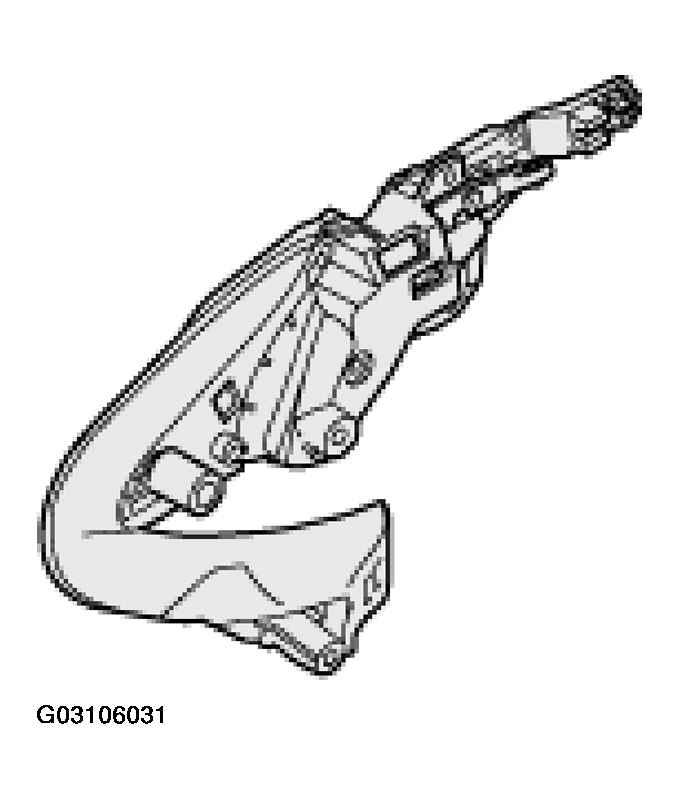

Fig 2: Identifying Inner Door Release - Variant A (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
