Removing the regulator for wiping interval

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical plug connection.
  2. Press the locking tabs of the regulator for the wiping interval -arrows A- outwards and guide the regulator out of the front cover towards the front.

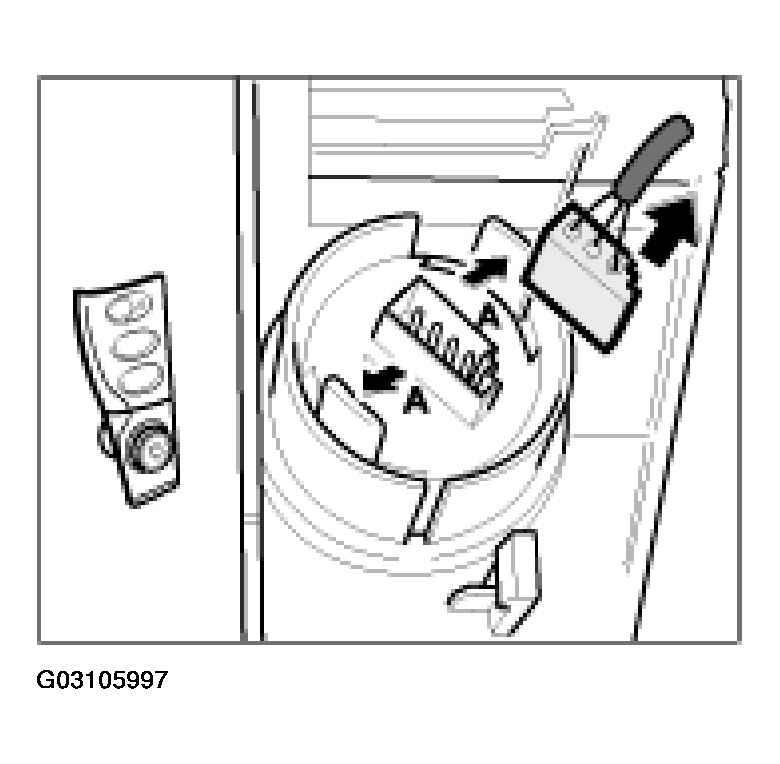

    3. Fig 1: Removing Regulator For Wiping Interval (As Of MY 1997)
    G03105997Courtesy of PORSCHE OF NORTH AMERICA, INC.
