Installing side airbag unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Left/right identification of the side airbag unit for installation:
- Inscription R = Right door
- Inscription L = Left door

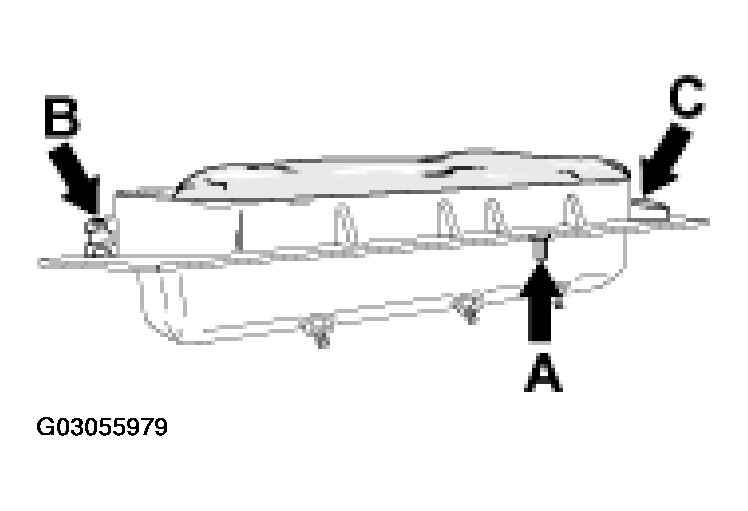

- Locking pin -A- must always point to the rear. See Fig 1 .
- The wire connection point -B- must always face the front. See Fig 1 .
- Fastening clip M5 -C- always to the rear. See Fig 1 .
NOTE:
- The cover film behind the side airbag unit must not be damaged (protects against water leaking in)!
- Install airbag unit with the inscription "R" in the right-hand door and fasten.
- Engage electrical plug connection.
- Reinstall the door trim panel.
Tightening torque for fastening screws (4 screws M6 x 16): 10 Nm (7.5 ftlb.), (1 screw M5 x 10): 6 Nm (4.5 ftlb.)
Removing sensor for side airbag unit
WARNING:
Danger of injury and damage to property as a result of incorrect handling of airbag units!
Please observe the following points:
- After an accident, the sensor of the triggered side airbag unit must be examined for damage!
- The sensor must be replaced after the side airbag has been triggered for the third time!
NOTE:

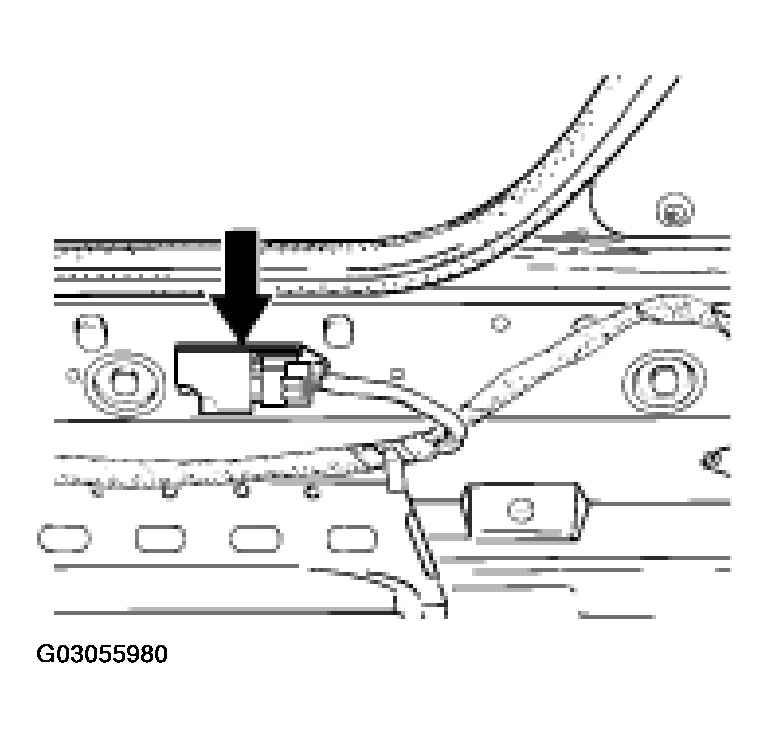

- Sensors for triggering the side airbag unit are fastened on the inner lower side member on the left and right-hand sides in the vehicle!
- The cover strip and the support on the lower side member must be removed.
