Removing and installing the frame for the roll-over protection system - up to model year 2001: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

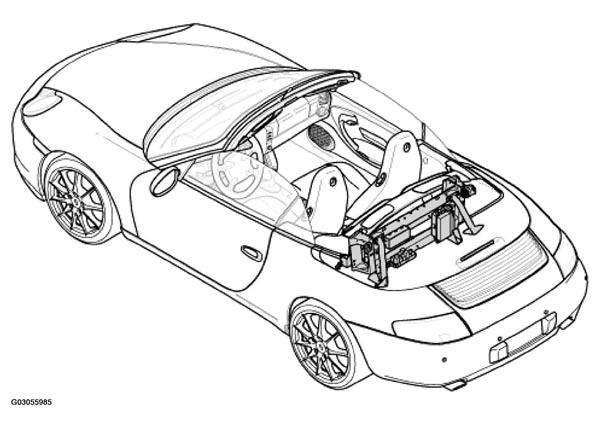

Fig 1: Identifying Roll Over Protection System Frame (Up To MY 2001)
G03055985Courtesy of PORSCHE OF NORTH AMERICA, INC.

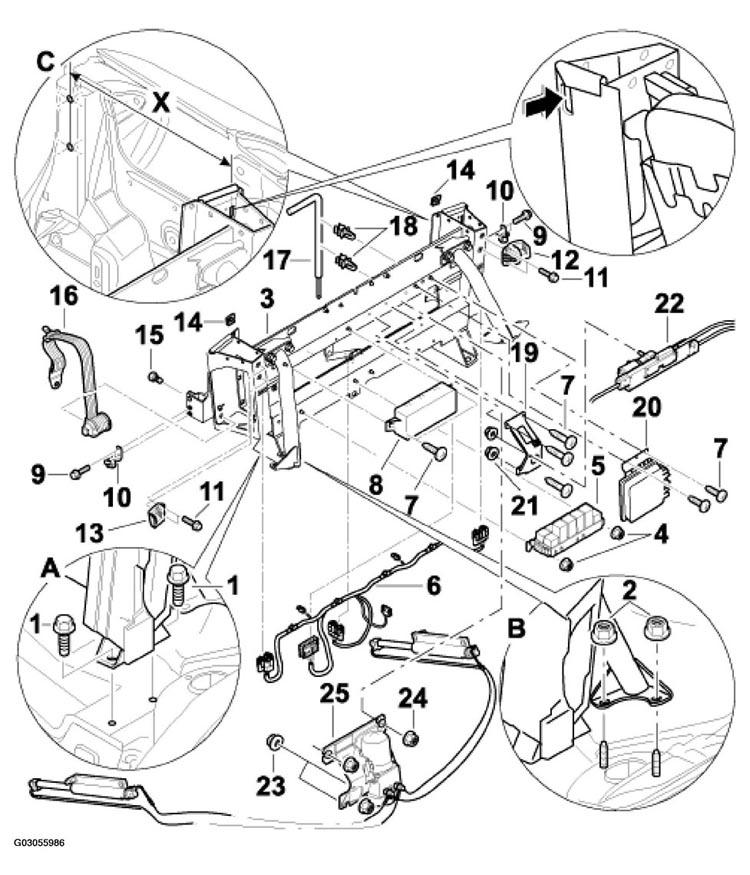

Fig 2: Removing/Installing Roll Over Protection System Frame Components (Up To MY 2001)
G03055986Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • The frame for the roll-over protection system up until 2001 differs from the frame for the roll-over protection system as of 2002 by their different component arrangement of DME + Tiptronic control unit, relay carrier, convertible top Z drive, and Z-supports behind the frame -3-. See Fig 2 .
  • The frame for roll-over protection systems up until 2001 can only be installed in vehicles with flexible Cabriolet rear window.
REMOVAL/INSTALLATION PROCEDURE OF ROLL OVER PROTECTION SYSTEM FRAME (UP TO MY 2001)

No. Designation Qty. Removal Installation
1 Hexagon-head bolt 4 Unscrew. Tighten. See TIGHTENING TORQUES  .
2 Collar nut 4 Unscrew. Tighten. See TIGHTENING TORQUES  .
3 Frame 1 Undo hexagon-head bolts -1-2-3-  . See Fig 2 . Position frame in the vehicle. -Dimension X: 491 +/- 1 mm-1-2-  . See Fig 2 .
4 Collar nut 2
5 Relay carriers 1
6 Wiring harness 1
7 Oval-head screw 10
8 Convertible-top control module 1 Refer to REMOVING AND INSTALLING CONVERTIBLE-TOP CONTROL UNIT . Refer to REMOVING AND INSTALLING CONVERTIBLE-TOP CONTROL UNIT .
9 Hexagon-head bolt 4   See TIGHTENING TORQUES  .
10 Holder 2
11 Hexagon-head bolt 4   See TIGHTENING TORQUES  .
12 Right bracket 1
13 Left bracket 1
14 Clip 2   Inspect and replace if necessary.
15 Hexagon-head bolt 1   See TIGHTENING TORQUES  .
16 Belt reel, left 1
17 Assembly key 1   Clip in.
18 Clip 2   Inspect and replace if necessary.
19 Holder 1
20 DME + Tiptronic control unit 1
21 Collar nut 3   See TIGHTENING TORQUES  .
22 Z drive VDKD cpl. 1
23 Collar nut 2   See TIGHTENING TORQUES  .
24 Collar nut 3   See TIGHTENING TORQUES  .
25 Convertible top Z drive 1 Refer to REMOVING AND INSTALLING HYDRAULIC CYLINDERS . Refer to REMOVING AND INSTALLING HYDRAULIC CYLINDERS .
