Remove driver's airbag unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Remove ignition key.
- Disconnect the battery and cover terminal or battery.

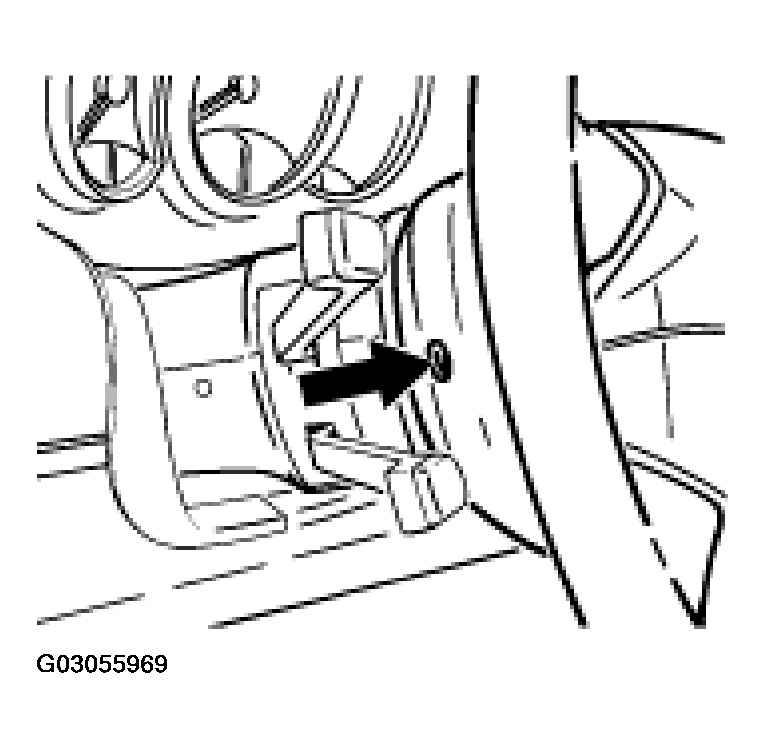

- Undo the -fastening screws-
(2 ea.) with a socket wrench insert for inside Torx T 30 (at least 50 mm long).
NOTE:
- The self-locking screws must be replaced every time they are undone!
- To do this, undo the retaining bracket of the airbag unit (3 screws) in the steering wheel!
- Disconnect the electrical plug connection.
WARNING:
Danger of injury and damage to property as a result of incorrect handling of airbag units!
Please observe the following points:
- The airbag unit must always be deposited so that the airbag opening faces upwards!
- If removed for an extended period, the airbag unit must be kept in a locked place!
- Observe the safety regulations!
