Removing contact unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove airbag steering wheel. Refer to REMOVING AND INSTALLING STEERING WHEEL (AIRBAG) .
  2. Undo and remove the panel.

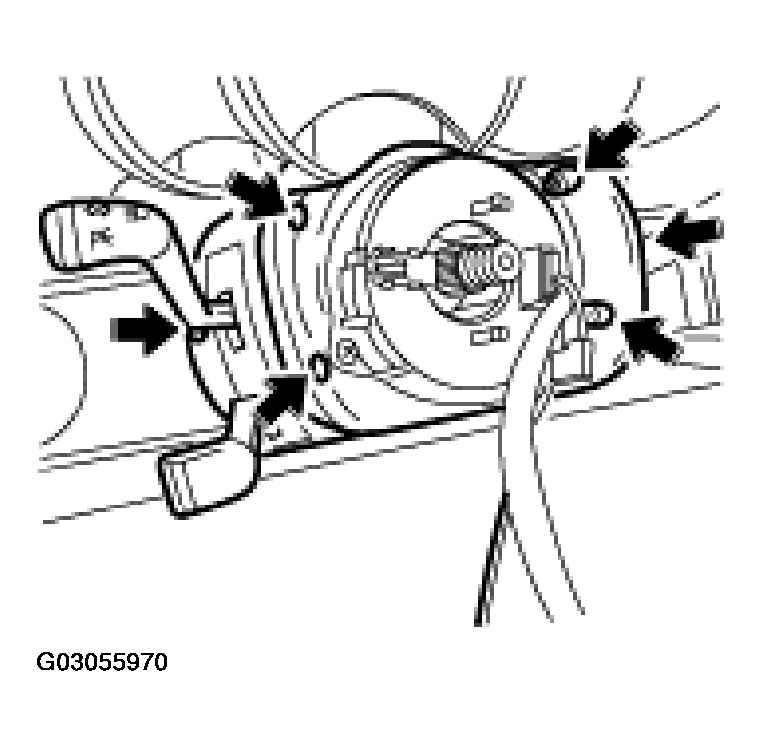

    Fig 1: Removing Panel
    G03055970Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Undo the -fastening screws-  of the contact unit.

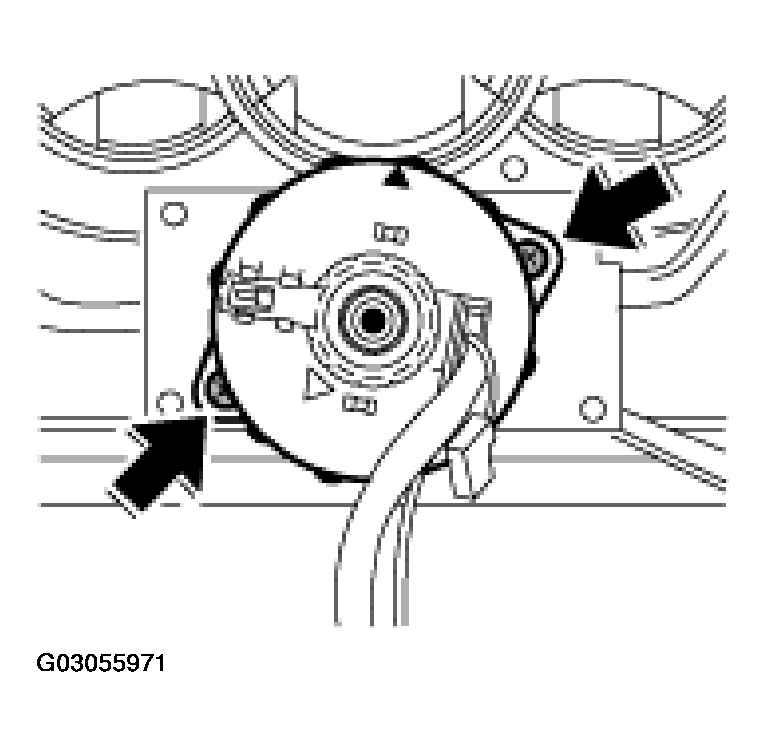

    Fig 2: Removing Contact Unit Screws
    G03055971Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull forward and disconnect the electrical plug connections.
  5. Remove the contact unit.
NOTE:
  • To prevent unintended rotation of the contact unit (KE) when the steering wheel has been removed, the contact unit locks itself when the steering wheel is pulled back!
  • Likewise, the contact unit unlocks automatically when the steering wheel is refitted!
