Installing contact unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front wheels still unchanged in straight-ahead position.
  2. Ensure that the exact centre position -(arrows)-  of the contact unit is maintained.

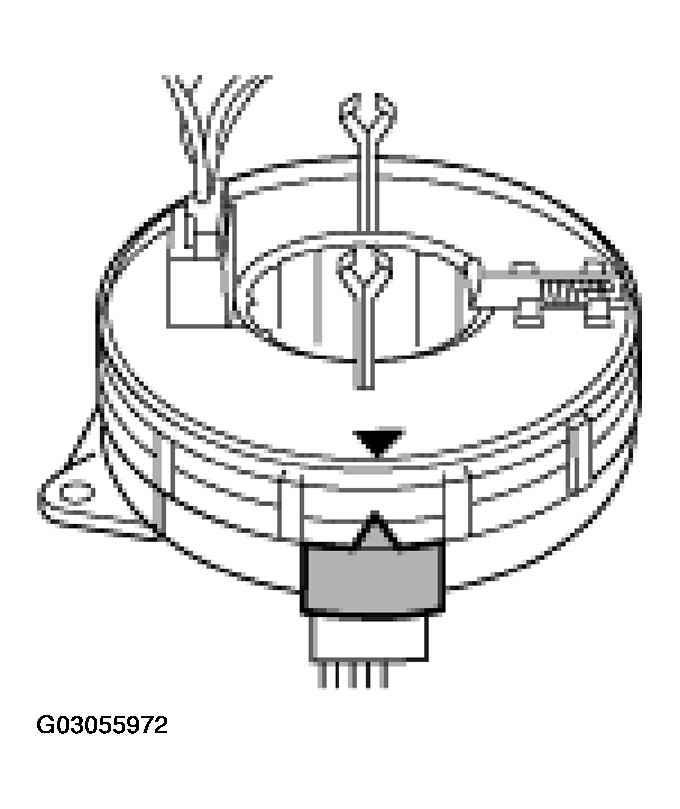

    Fig 1: Aligning & Installing Contact Unit
    G03055972Courtesy of PORSCHE OF NORTH AMERICA, INC.
