Remove sensor for side airbag

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Sensors for triggering the side airbag unit are fastened on the inner lower side member on the left and right-hand sides in the vehicle.
After an accident, the sensor of the triggered side airbag unit must be examined for damage and replaced if necessary.
The sensor must be replaced after the side airbag has been triggered for the third time.
Safety conditions must be observed when handling airbags. See SAFETY REGULATIONS FOR VEHICLES WITH AIRBAG AND BELT TENSIONER .
Remove front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
Remove the side lining at rear. Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
Remove sill. Refer to REMOVING AND INSTALLING INNER SILL (DRIVER'S SIDE) - AS OF MODEL YEAR 2001 and REMOVING AND INSTALLING INNER SILL (PASSENGER'S SIDE) .

Disengage floor covering at the support and lay it in the vehicle interior.

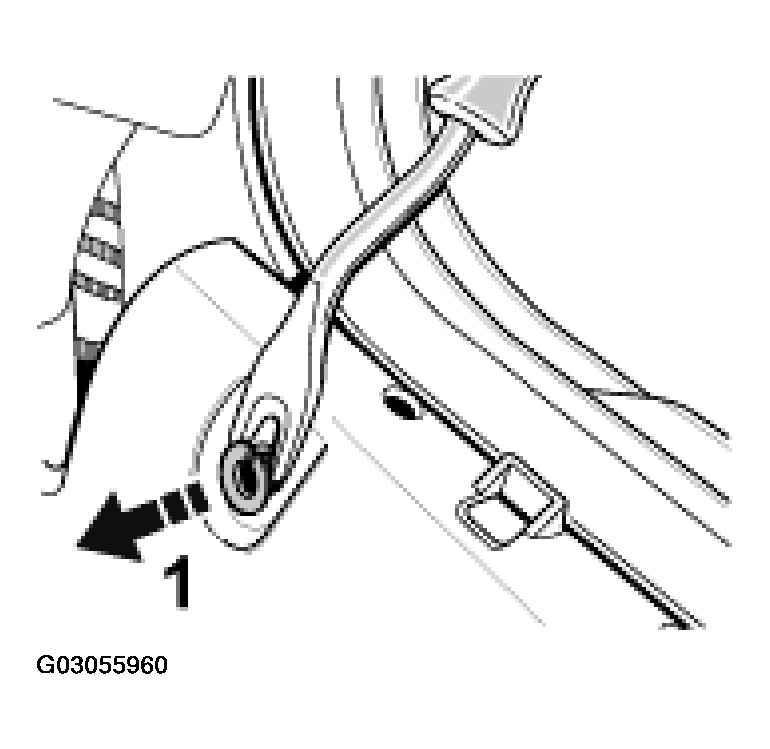

Unlock locating peg -1- of the support using the commercially available removal tool. See TOOLS .

Fig 1: Unlocking Locating Peg Of Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.

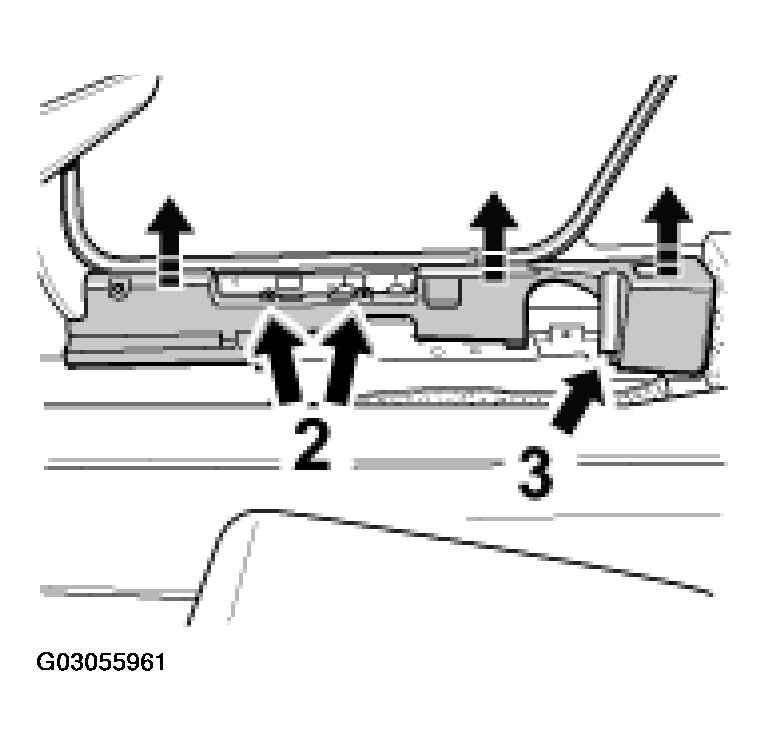

Unscrew fastening screws -2- and nuts -3- and carefully pull the support up and out of the retaining points.

Fig 2: Unscrewing Fastening Screws & Nuts
Courtesy of PORSCHE OF NORTH AMERICA, INC.

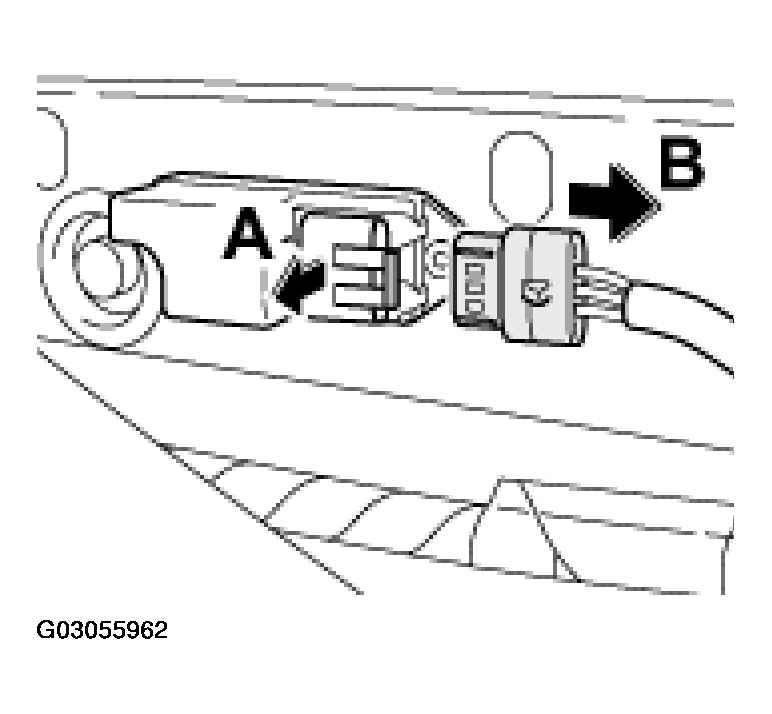

Loosen the electrical plug connection on the airbag sensor.

Fig 3: Loosening Electrical Plug Connection On Airbag Sensor
Courtesy of PORSCHE OF NORTH AMERICA, INC.

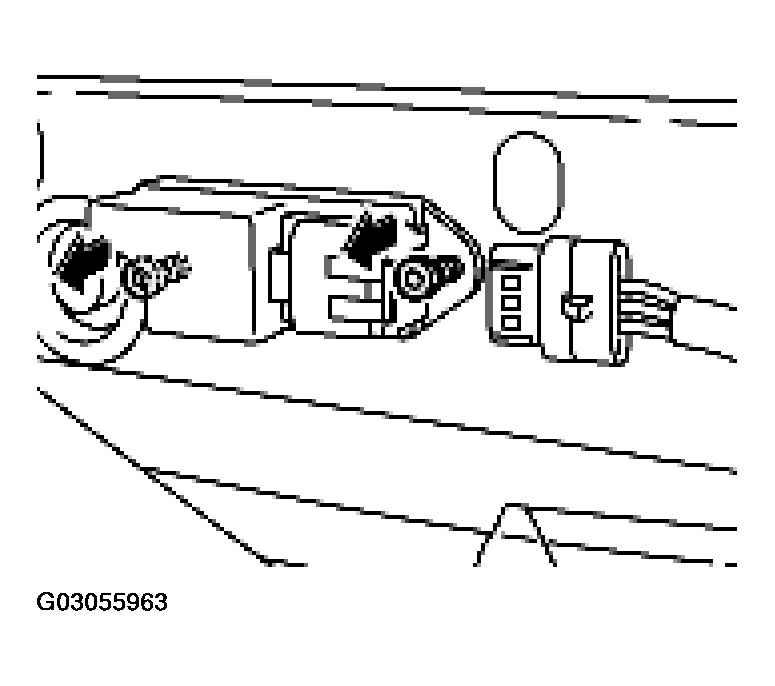

Remove both fastening screws and remove the sensor.

Fig 4: Removing Fastening Screws & Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.
