Install sensor for side airbag

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

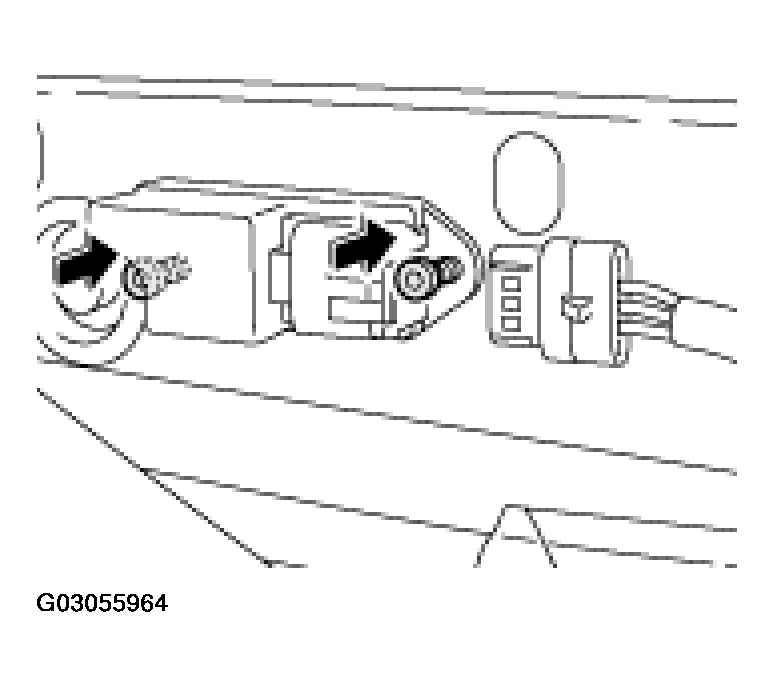

Position sensor and secure with the fastening screws. Tightening torque 10 Nm (7.5 ftlb.).

Fig 1: Installing Side Airbag Sensor & Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.

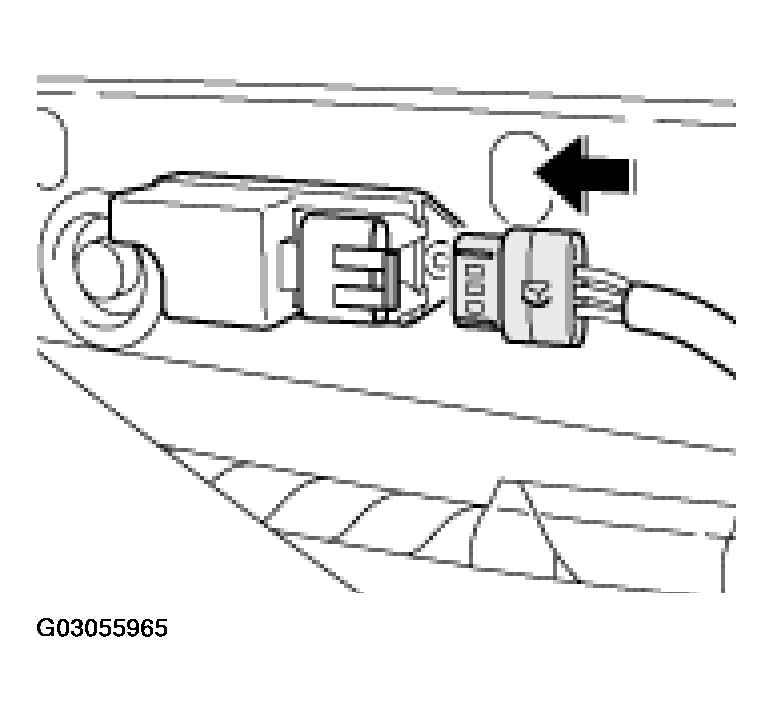

Connect electrical plug connection.

Fig 2: Connecting Electrical Plug Connection
Courtesy of PORSCHE OF NORTH AMERICA, INC.

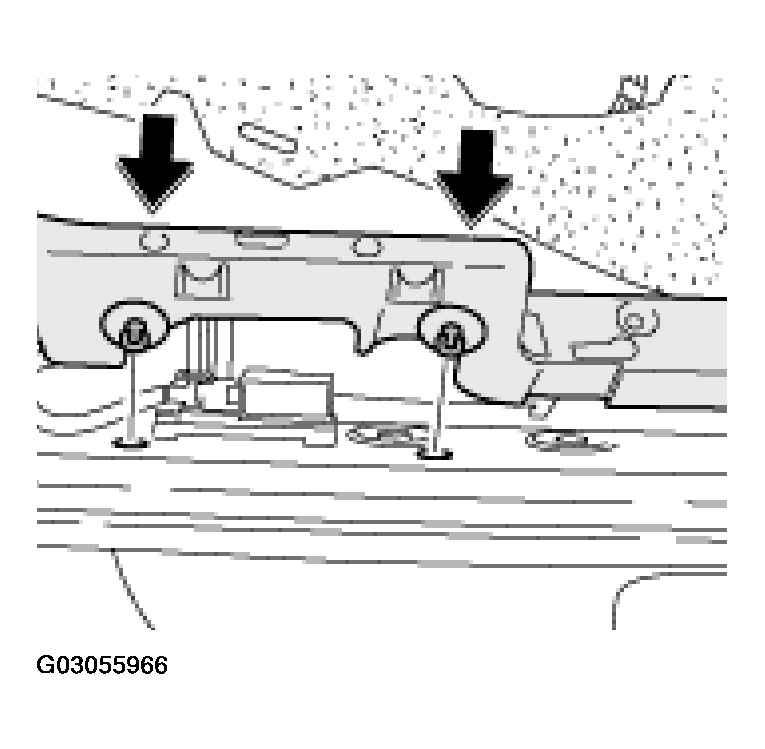

Position the support and engage in lower side member.

Fig 3: Positioning Support And Engaging In Lower Side Member
Courtesy of PORSCHE OF NORTH AMERICA, INC.

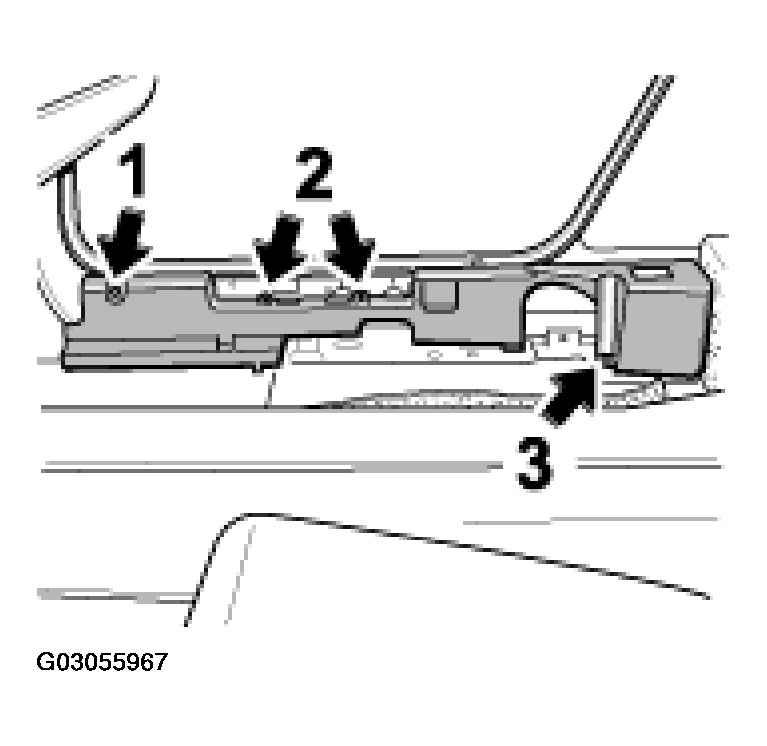

Push in the locating peg -1- of the support and check that it is sitting correctly. See Fig 4 .
Tighten the fastening nuts -3- and the fastening screws -2-. Tightening torque -2- 7.2 Nm (5.5ftlbs.). See Fig 4 .

Fig 4: Pushing In Locating Peg Of Support, Tightening Nuts & Screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Lay the floor covering over the support and engage.

Using the Porsche System Tester, read out any faults present in the POSIP menu and erase.
Insert sill. Refer to REMOVING AND INSTALLING INNER SILL (DRIVER'S SIDE) - AS OF MODEL YEAR 2001 and REMOVING AND INSTALLING INNER SILL (PASSENGER'S SIDE) .
Mount the side lining at rear. Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
Installing front seat. Refer to REMOVING AND INSTALLING FRONT SEAT - AS OF MY 1996 .
