Mechanical emergency triggering of the roll-over protection system
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
If the roll-over bar modules cannot be triggered via the diagnostic interface, mechanical emergency triggering is possible.
WARNING:
Danger of injury during mechanical emergency actuation!
- Danger movement range of the roll-over protection system must be kept clear.

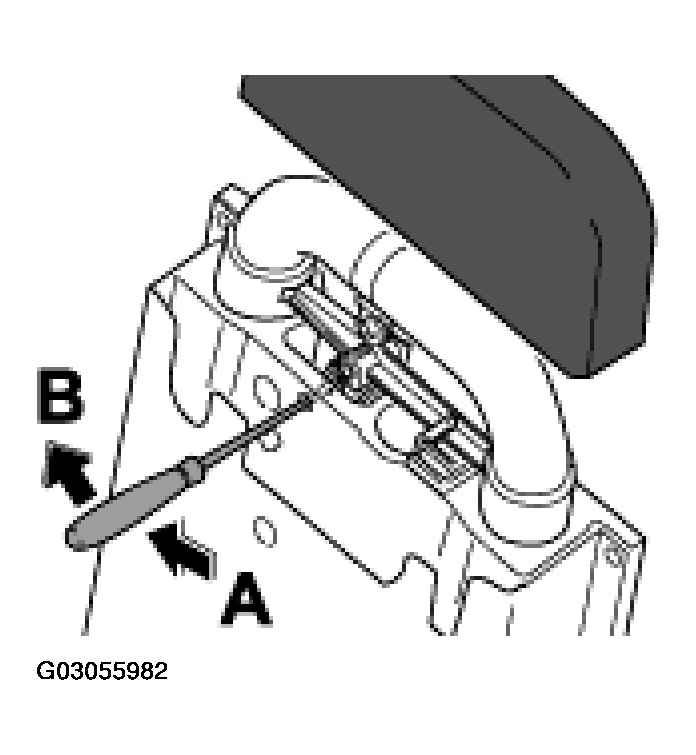

Insert a screwdriver into the hole in the module and press it against the top edge of the pawl. Press the screwdriver to the right -arrow A- and hold it while pressing up in direction of arrow -arrow B- . Refer to Fig 1 . The roll-over protection system is released.
