Removing rear three-point belt
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
REAR THREE-POINT BELT REMOVAL PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Removing side-panel lining | Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 . | |
| Removing C-pillar | Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS, - AS OF MY 1997 . | |

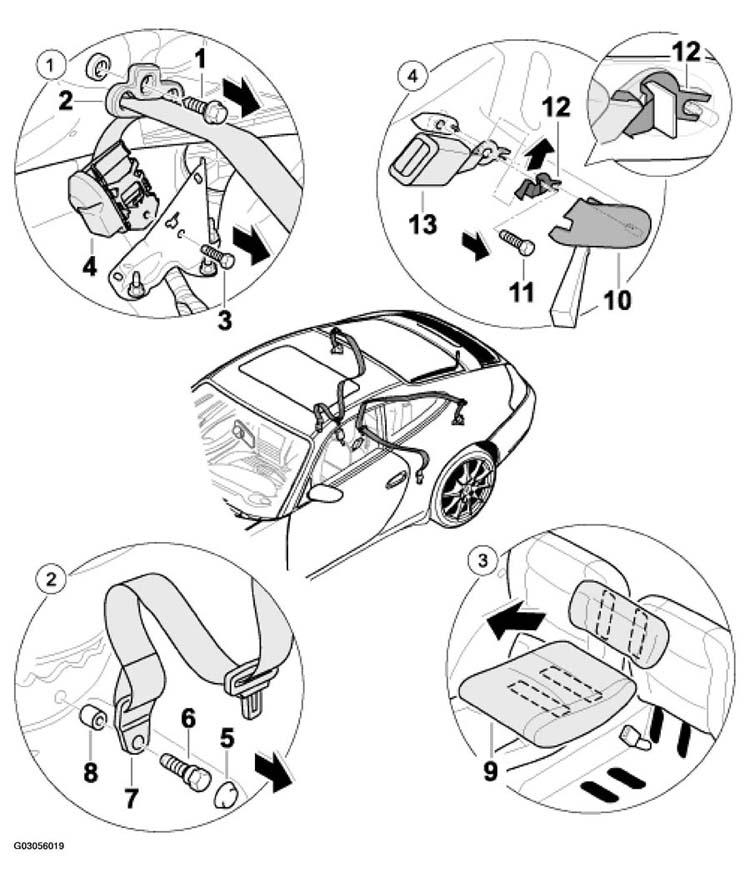

| 1 | Removing automatic belt device | Unscrew fastening screw -1-2-3-4- . See Fig 1 . |
| 2 | Removing seat belt and fitting | Press out the covering cap -5-6-7-8- . See Fig 1 . |
| 3 | Removing seat cushion | Pull the seat cushion -9- . See Fig 1 . |
| 4 | Removing belt buckle | Press out the cover -10-11-12-13- . See Fig 1 . |
