Installing rear three-point belt
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
REAR THREE-POINT BELT INSTALLATION PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

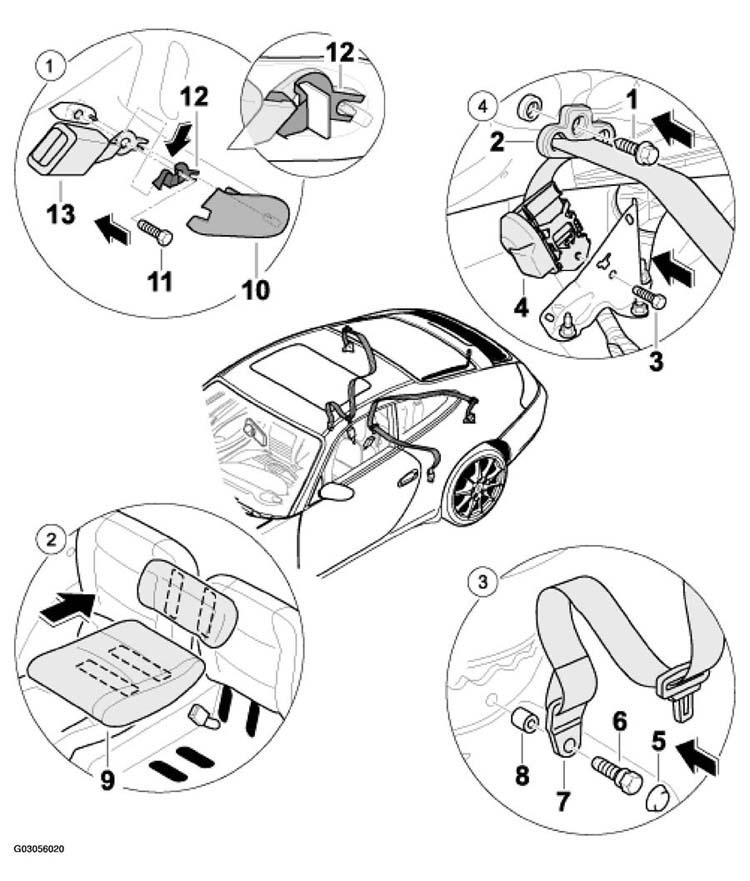

| 1 | Installing belt buckle | Screw the belt buckle -13-12-11- . See Fig 1 . |
| 2 | Installing seat cushion | Press the seat cushion -9- . See Fig 1 . |
| 3 | Installing seat belt and fitting | Make sure that the belt strap can run properly! -7-8-6-5- . Screw the seat belt with fitting -7-8-6-5- . See Fig 1 . |
| 4 | Installing automatic belt device | Position the automatic belt device -4-arrow- . See Fig 1 . |
| Installing B-pillar | Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS, - AS OF MY 1997 . | |
| Installing side-panel lining | Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 . |
