Removing and installing adjustment fitting
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
ADJUSTMENT FITTING REMOVAL/INSTALLATION PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS, - AS OF MY 1997 . | ||||

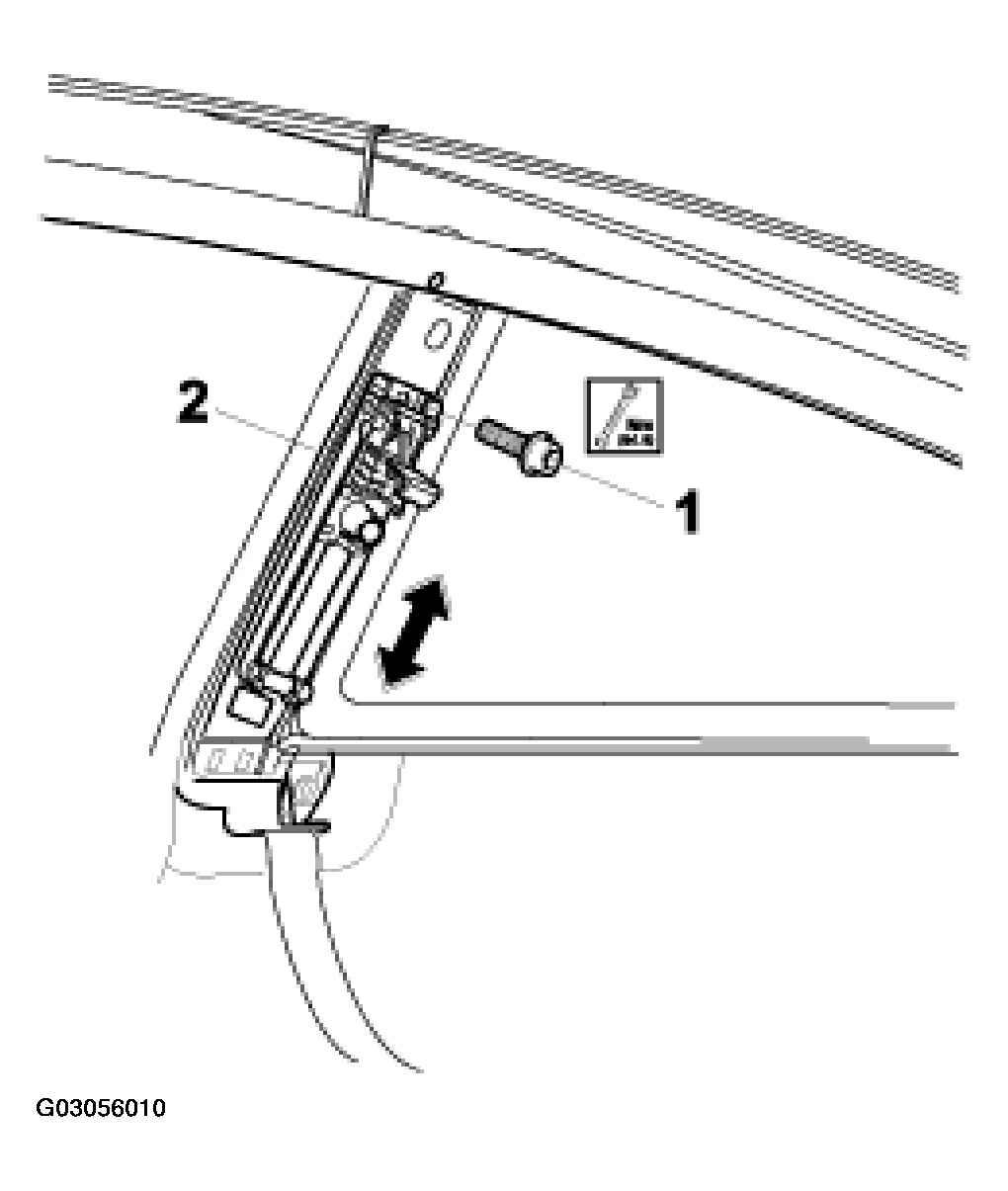

| 1 | Fastening screw | 1 | Unscrew fastening screw -1- . See Fig 1 . | Screw in fastening screw -1- . See Fig 1 . |
| 2 | Adjustment fitting | 1 | Guide the adjustment fitting -2-direction of the arrow- . See Fig 1 . | Insert the adjustment fitting -2-direction of the arrow-1- . See Fig 1 . |
