Disposal of airbag and belt tensioner units: Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

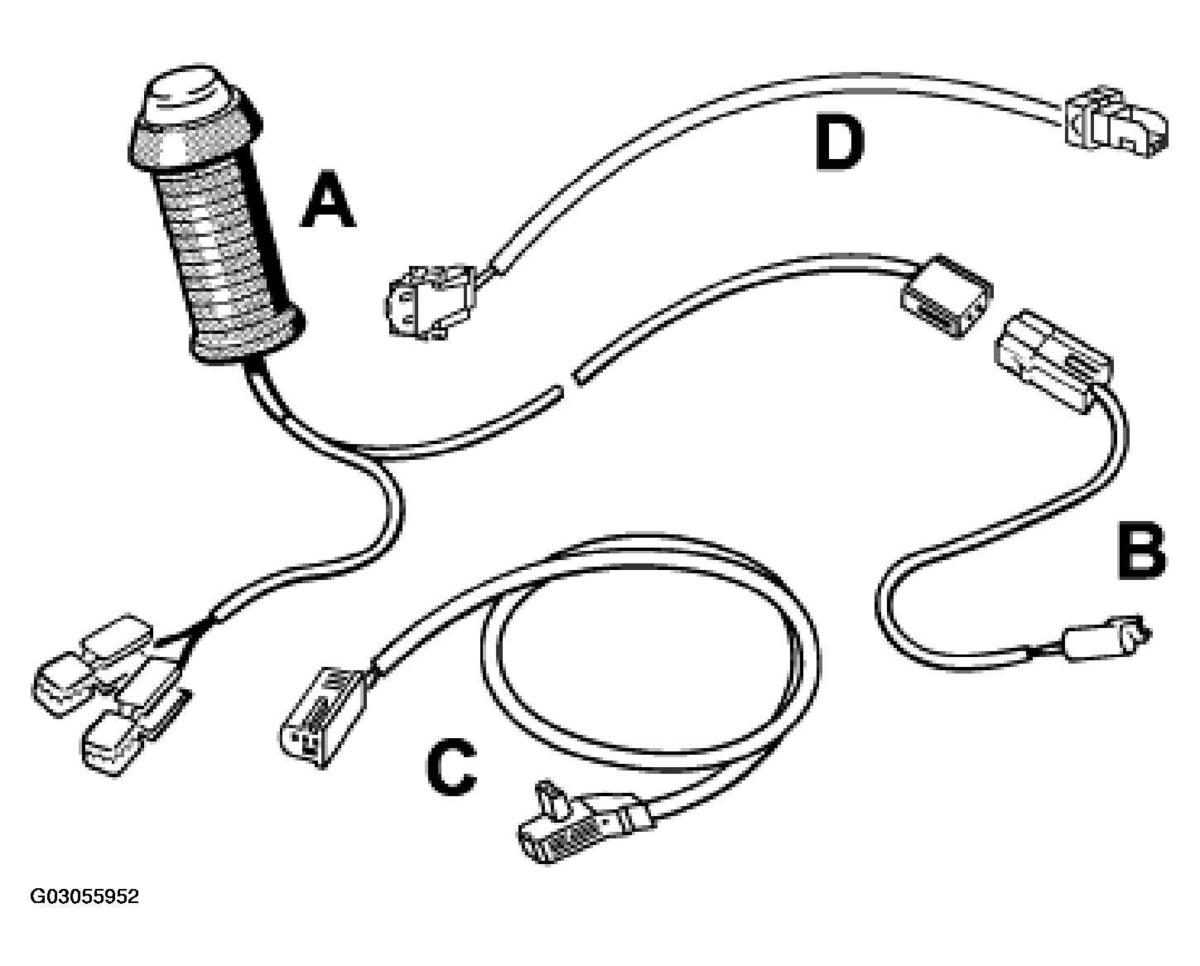

Fig 1: Identifying Ignition Device And Cables

Courtesy of PORSCHE OF NORTH AMERICA, INC.

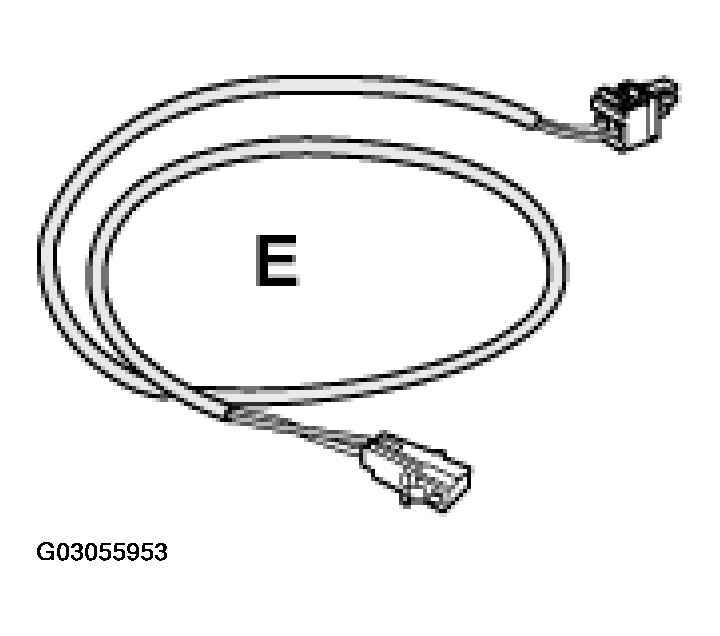

Ignition cable for belt tensioner

Fig 2: View Of Ignition Cable

Courtesy of PORSCHE OF NORTH AMERICA, INC.

IGNITION DEVICE AND CABLES DESCRIPTION

Item

Designation

Special tool

Explanation

Ignition device

9257⁽¹⁾

Ignition cable

9567

For driver's airbag

Ignition cable

9566

For passenger's airbag

Ignition cable

9257/2

For side airbag

Ignition cable

9257/3

For belt tensioner

⁽¹⁾	Order if required
