Connecting ignition tool

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Driver's side

Connect the ignition device 9257 with the adapter cable 9567 directly to the 2-pin plug of the driver's airbag contact unit (under the steering column).

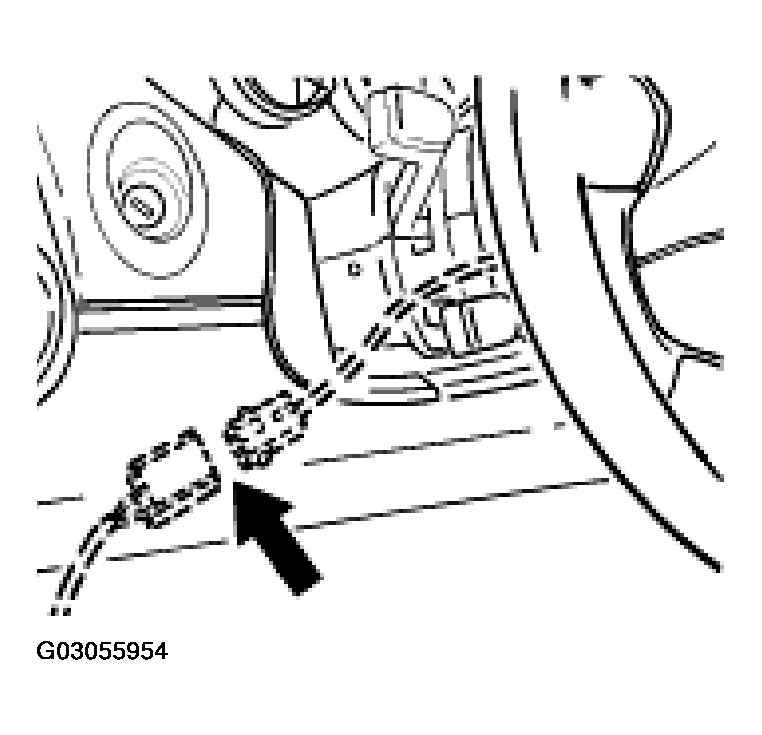

Fig 1: Connecting Airbag Ignition Tool Driver's Side

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Passenger's side

Connect the ignition device 9257 with the adapter cable 9566 to the passenger's airbag plug connection. Place the ignition device in front of the vehicle through the door gap.

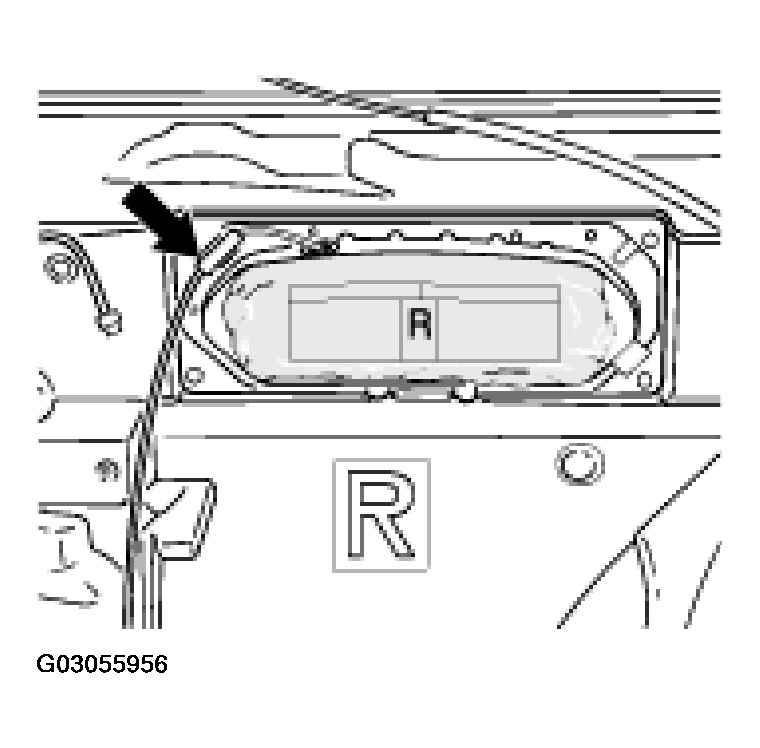

Fig 2: Connecting Airbag Ignition Tool Passenger's Side

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Side airbag

Connect the ignition device 9257 with the adapter cable 9257/2 to the side airbag plug connection. Place the ignition device in front of the vehicle through the door gap.

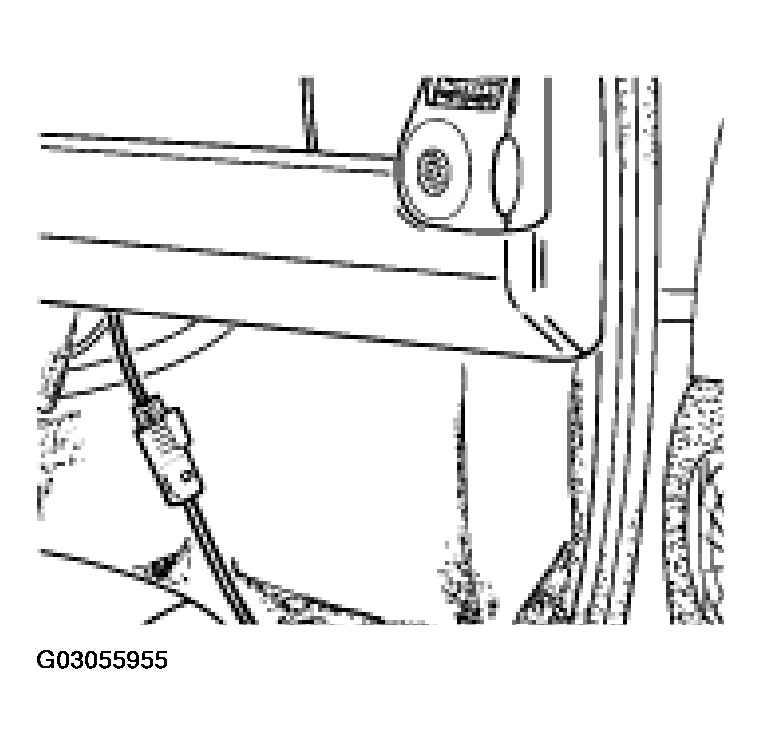

Fig 3: Connecting Ignition Tool To Side Airbag Plug Connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Belt tensioner

Connect the ignition device 9257 with the adapter cable 9257/3 to the belt tensioner. Place the ignition device in front of the vehicle through the door gap.

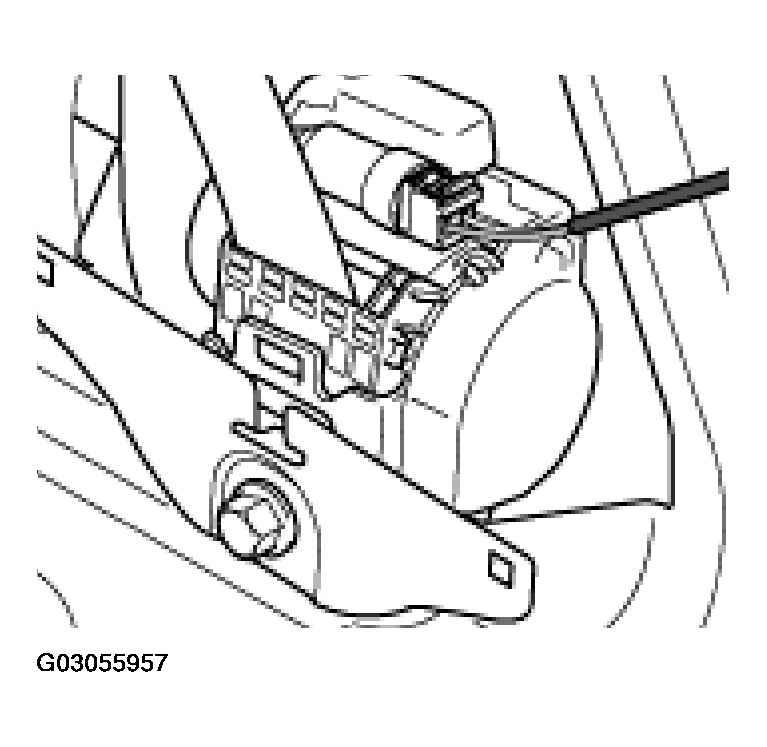

Fig 4: Connecting Ignition Tool To Belt Tensioner

Courtesy of PORSCHE OF NORTH AMERICA, INC.
