Removing sun visors

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detaching sun visor

    Detach the sun visor from the thrust bearing and pull out of the mounting saddle towards the centre of the car.

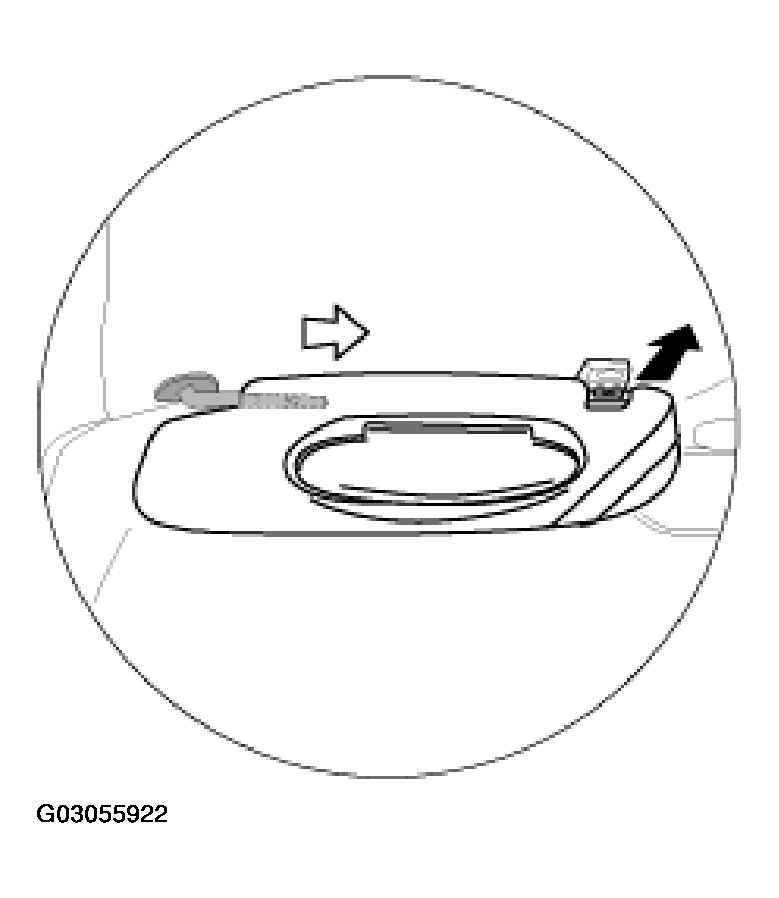

    Fig 1: Removing Sun Visors
    G03055922Courtesy of PORSCHE OF NORTH AMERICA, INC.
