Replacing pneumatic shock absorber

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

1. Removing the pneumatic shock absorber

Press the pneumatic shock absorber -1- out of the fastening tab -arrow B-. Turn the pneumatic shock absorber by 90° anti-clockwise in the direction of arrow -A- and guide it out of the glove compartment. See Fig 1 .

2. Installing the pneumatic shock absorber

Insert the pneumatic shock absorber -1- and turn it 90° clockwise in the direction of arrow -A-. Insert the pneumatic shock absorber into the fastening tab towards the -direction of arrow B-. See Fig 1 .

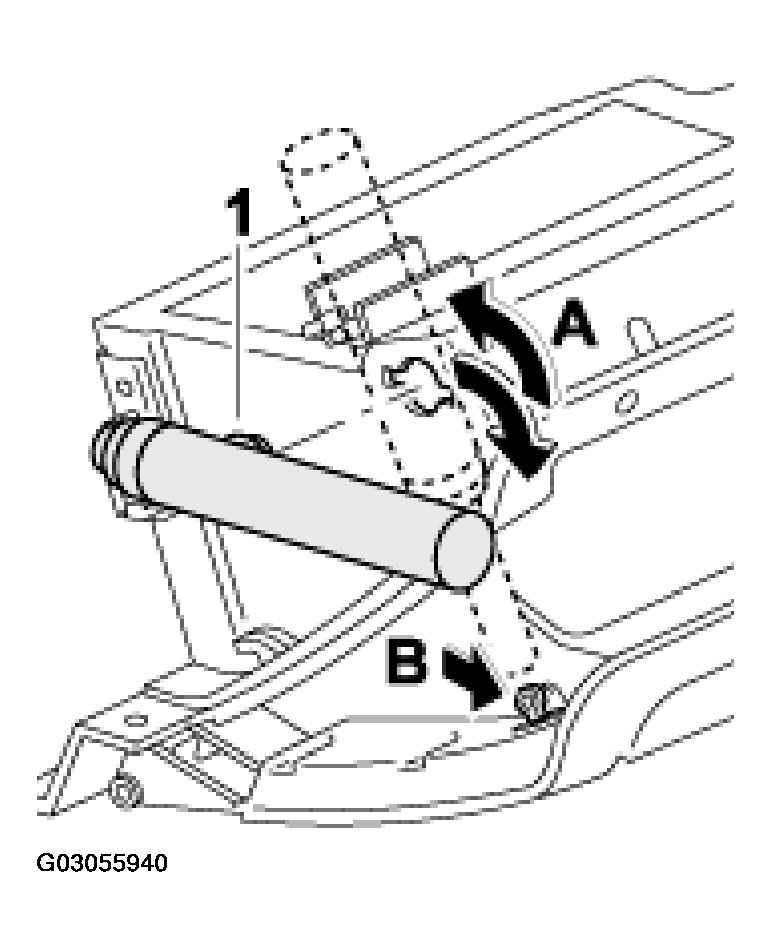

Fig 1: Installing Pneumatic Shock Absorber - As Of MY 2002
G03055940Courtesy of PORSCHE OF NORTH AMERICA, INC.
