Removing lid for glove compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

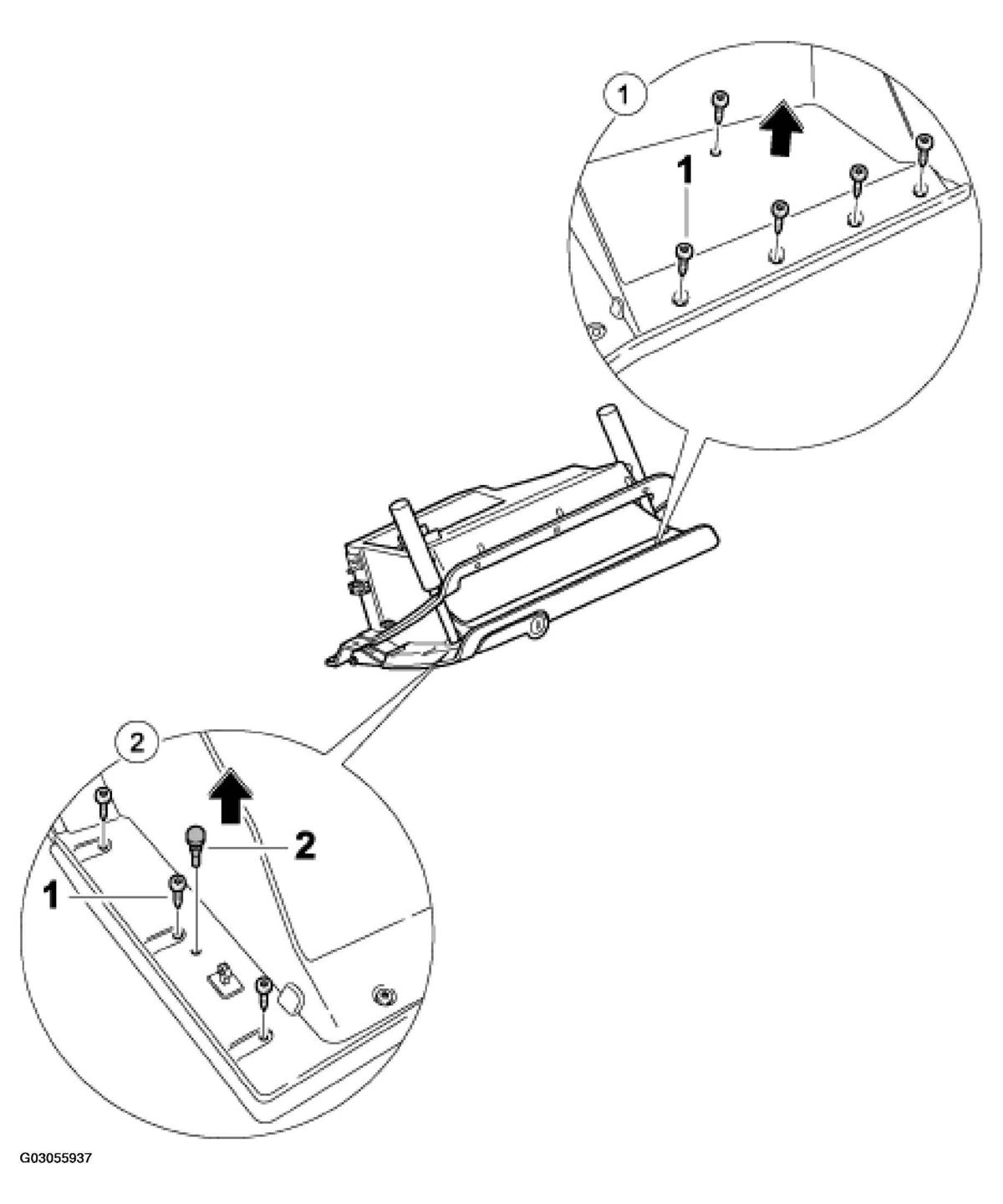

Fig 1: Removing Glove Compartment Lid - As Of MY 2002
G03055937Courtesy of PORSCHE OF NORTH AMERICA, INC.
GLOVE COMPARTMENT LID REMOVAL PROCEDURE - AS OF MY 2002

No. Procedure Instructions
1 Unscrewing the front fastening screws Unscrew front fastening screws -1-  . See Fig 1 .
2 Unscrewing fastening screws at the side Unscrew fastening screws -1-  . See Fig 1 .
