Installing lid for glove compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

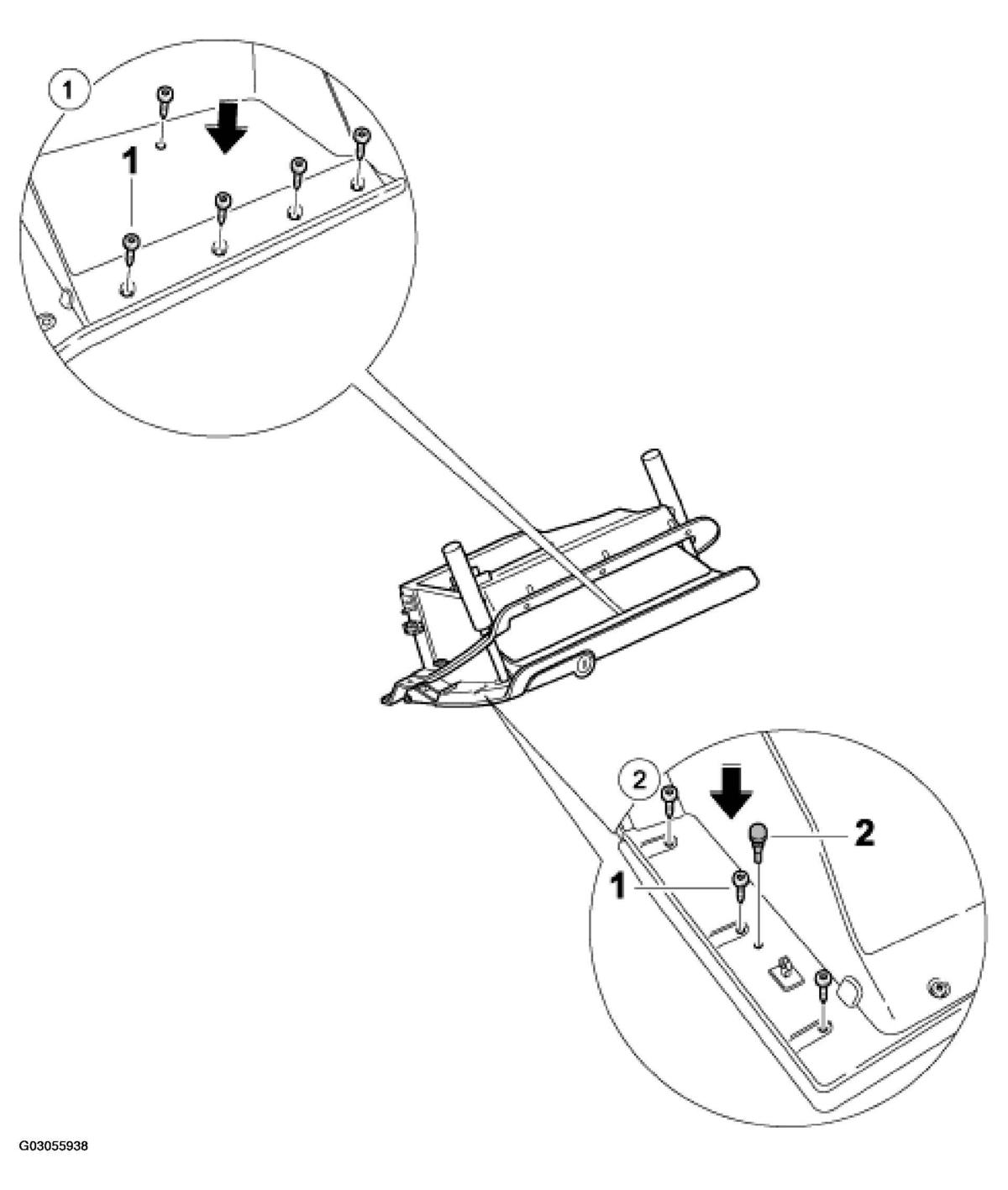

Fig 1: Installing Glove Compartment Lid - As Of MY 2002
G03055938Courtesy of PORSCHE OF NORTH AMERICA, INC.
GLOVE COMPARTMENT LID INSTALLATION PROCEDURE - AS OF MY 2002

No. Procedure Instructions
  Checking rubber stop Before installing the glove compartment lid, check the rubber stop -2-  . See Fig 1 .
1 Screwing in the front fastening screws Screw in front fastening screws -1-  . See Fig 1 .
2 Screwing in fastening screws at the side Screw in fastening screws -1-  . See Fig 1 .
