Disassembling sun visor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

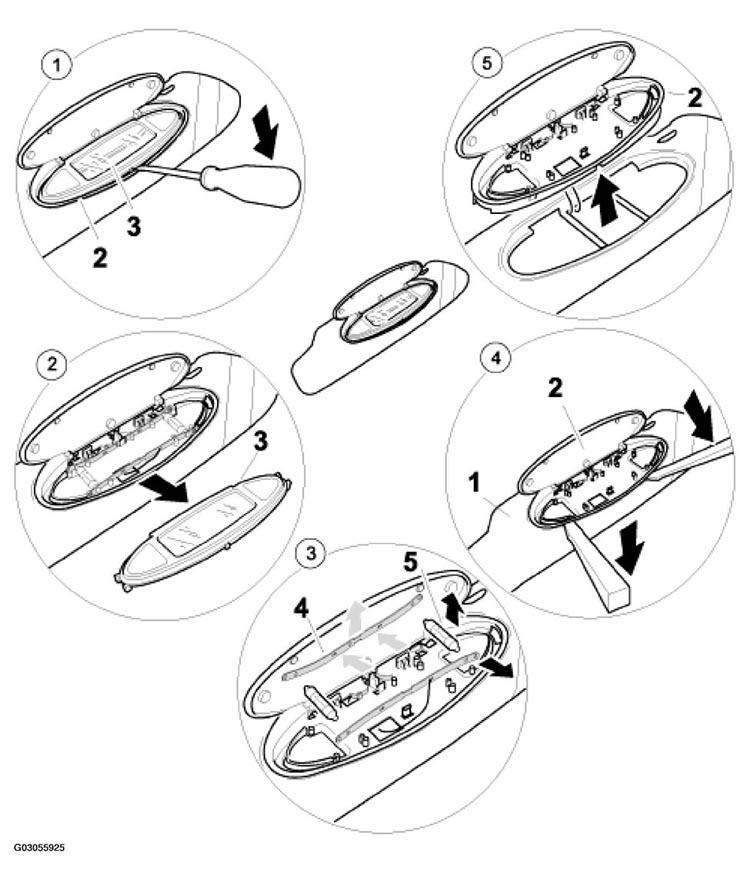

SUN VISOR DISASSEMBLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Unclip mirror insert -3- . See Fig 1 . | Insert a narrow screwdriver between the mirror insert -3-2- . See Fig 1 . |
| 2 | Remove mirror insert -3- . See Fig 1 . | Pull the mirror insert -3-2- . See Fig 1 . |
| 3 | Remove bulb -5-4- . See Fig 1 . | Remove the Sofitte 12V/3W bulb -5-4- . See Fig 1 . |
| 4 | Unclip mirror housing -2- . See Fig 1 . | Insert a narrow plastic spatula between the mirror housing -2-1- . See Fig 1 . |
| 5 | Remove mirror housing -2- . See Fig 1 . | Take the electric lead out of the mirror housing -2- . See Fig 1 . |
