Assembling sun visor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
SUN VISOR ASSEMBLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

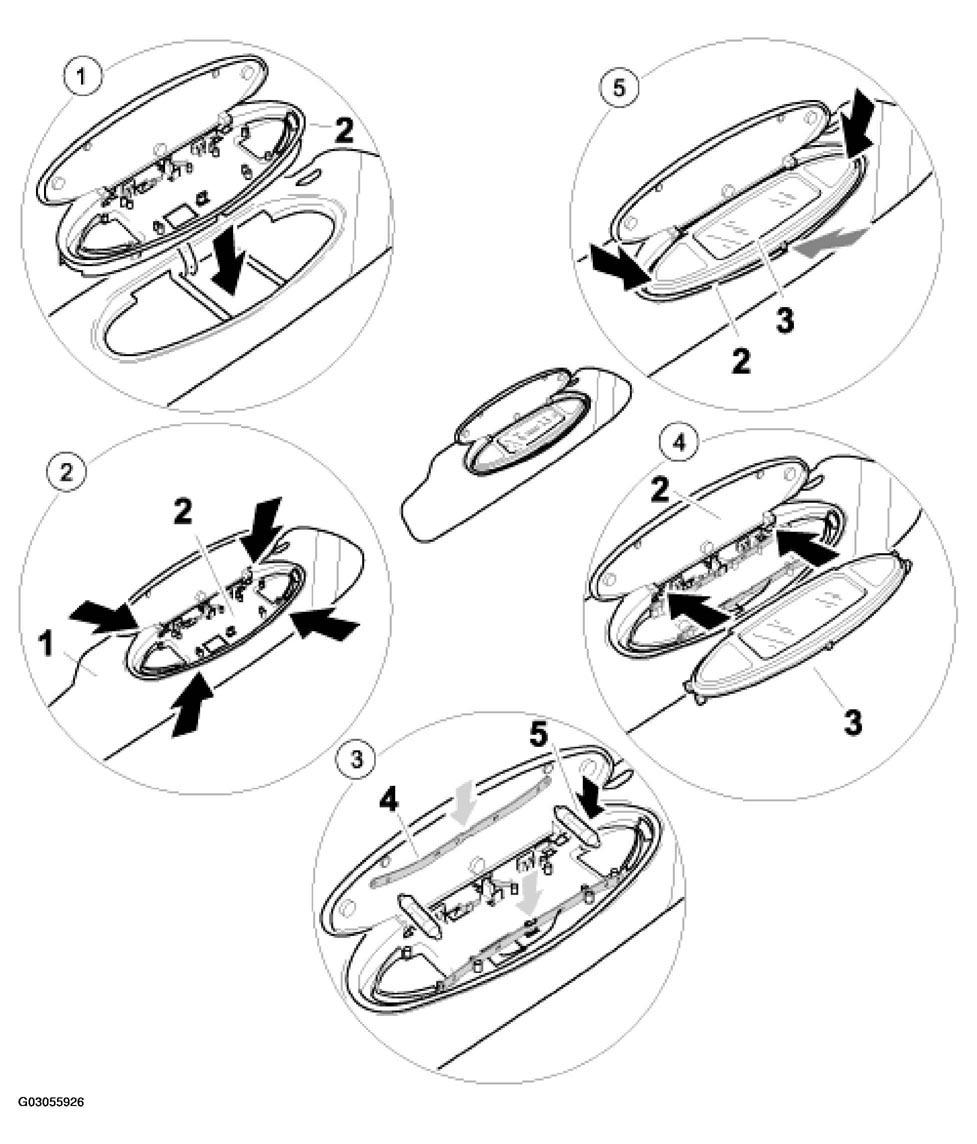

| 1 | Insert mirror housing -2- . See Fig 1 . | Insert electric lead into the mirror housing -2- . See Fig 1 . |
| 2 | Press in mirror housing -2- . See Fig 1 . | Press the mirror housing -2- . See Fig 1 . |
| 3 | Insert contact clips -4-5- . See Fig 1 . | Position the contact clips -4-5- . See Fig 1 . |
| 4 | Position mirror insert -3- . See Fig 1 . | Position the lugs on the left and right of the mirror insert -3-2- . See Fig 1 . |
| 5 | Clip in mirror insert -3- . See Fig 1 . | Clip the mirror insert -3-2- . See Fig 1 . |
