Filling the hydraulic system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

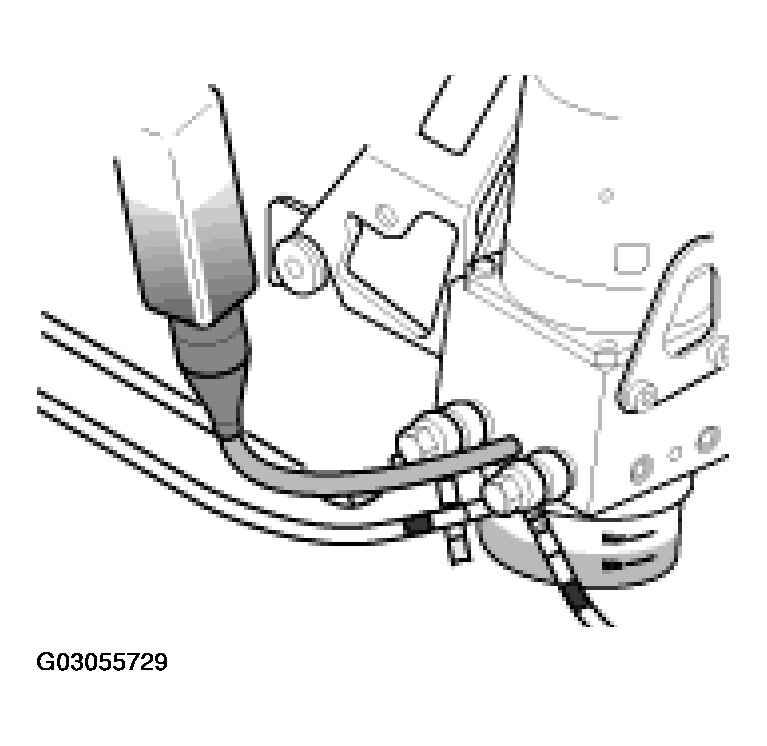

Fig 1: Filling Hydraulic System
G03055729Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Unscrew plug.
  2. Fill system using only original Porsche hydraulic oil.
  3. Unscrew plug. See TIGHTENING TORQUES .

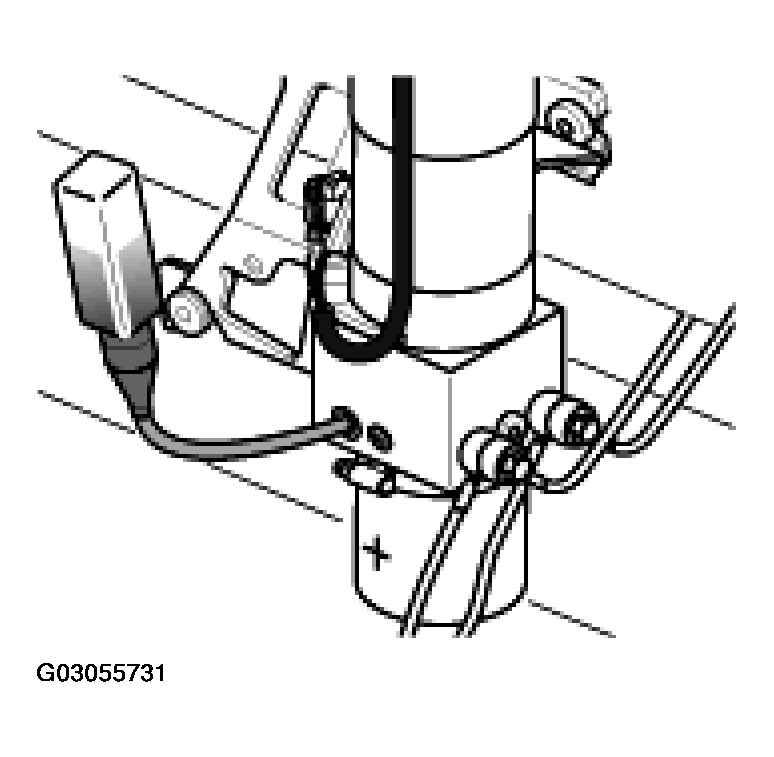

Fig 1: Filling Hydraulic System
G03055731Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. To fill the hydraulic system, remove bracket with hydraulic pump.
  2. Unscrew plug.
  3. Fill system using only original Porsche hydraulic oil.
  4. Screw in plug. See TIGHTENING TORQUES .
