Replacing ATF

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Top up only with ATF approved by Porsche. See APPROVED TRANSMISSION OILS TRANSMISSION .

Filling capacity: approx. 9.0 liters

Change quantity: approx. 4.5 liters

Place oil collection pan under the transmission.
Unscrew drainage screw -1- and drain ATF.

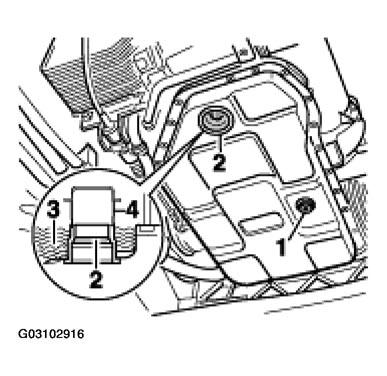

Fig 1: Locating ScrewFor Draining ATF
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Without ATF, the engine must not be started and the vehicle must not be towed.
Replacing sealing ring for drainage screw and screw in screw -1- .
Tightening torque: 40 Nm (30 ftlb.)
Unscrew the filler screw -2- and fill up ATF with special tool filling system V.A.G 1924 until ATF escapes from the hole of the filler screw.
Move selector lever to position "P" and allow engine to idle.
With engine running, top up ATF again until excess ATF emerges from the bore of the filler screw.
With the brake pedal pressed, change through all selector lever positions, remaining in each position for approx. 10 s.
Check the ATF level again and top up if necessary.

NOTE:

All instructions and test conditions for "Checking and topping up ATF fluid" must be observed. See TRANSMISSION MAINTENANCE: CHECKING AND TOPPING UP THE ATF .
