Transmission maintenance: Changing transmission oil in final drive (as of MY 2002): Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

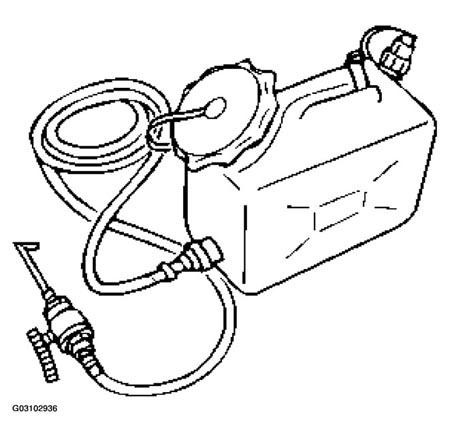

Fig 1: View Of Filling System V.A.G 1924 (Special Tool)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION

Item	Special tool designation	Remarks
	Filling system V.A.G 1924

Changing transmission oil in final drive

NOTE: Use only oils approved by Porsche. See Porsche Parts Catalogue!

Filling capacity: 1.2 liters

Unscrew oil filler plug -A-.

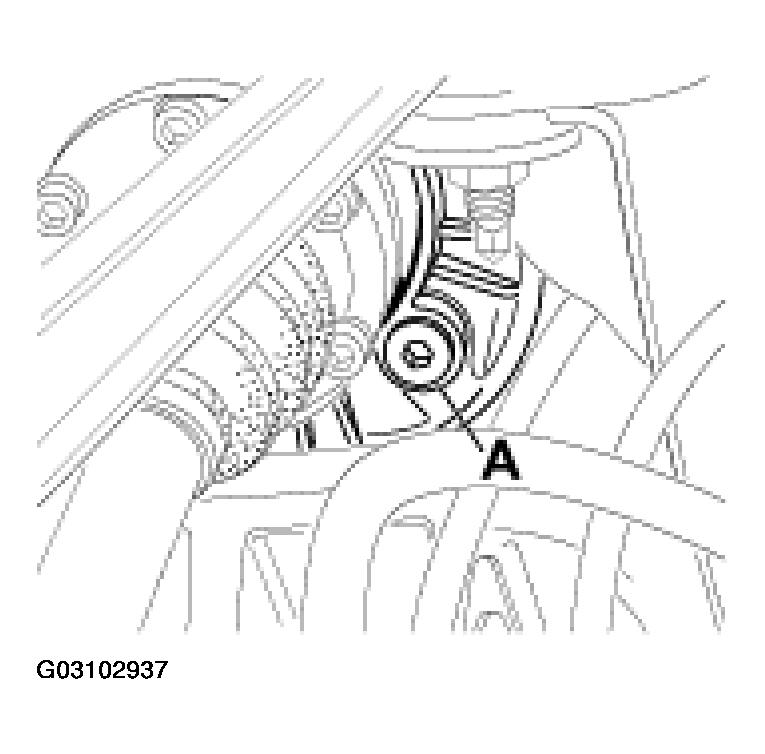

Fig 2: Identifying Oil Filler Plug In Final Drive (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unscrew oil drain plug -arrow- . Drain oil with vehicle standing horizontally.

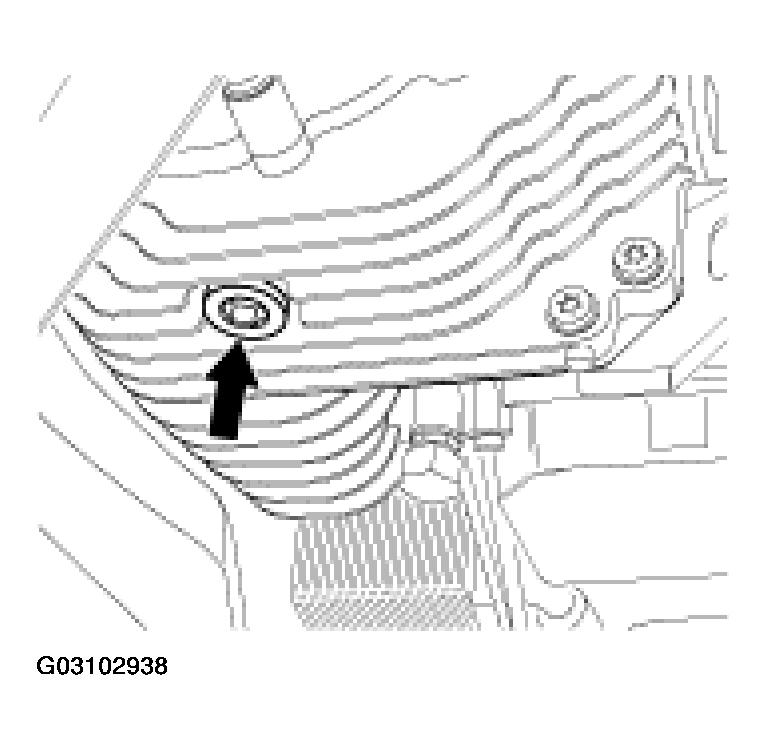

Fig 3: Identifying Oil Drain Plug In Final Drive (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Clean the drain plug and filler plug.
Replace sealing rings for the drain plug and filler plug.
NOTE: Attach the special tool as high as possible on the vehicle.
Fill in oil with special tool V.A.G 1924 up to the lower edge of the oil filler opening.
Screw in and tighten the filler plug and drain plug.

Filler plug tightening torque: 22 Nm (16 ftlb.)

Drain plug tightening torque: 25 Nm (19 ftlb.)
