Special tool required for engine maintenance
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

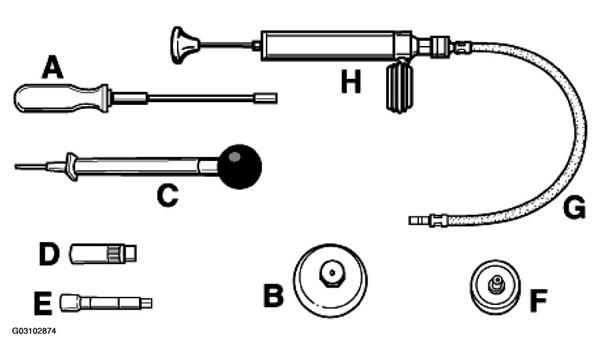

SPECIAL TOOLS DESCRIPTION
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| A | Flexible screwdriver wrench size 7 | Commercially available | for undoing or tightening screw hose clamps |
| B | Oil filter key | 9204 | |
| C | Frost protection testing device | Commercially available | for checking the frost protection content in the coolant circuit. The structural shape can deviate from that in shown in the illustration. |
| D | Spark plug socket wrench | Commercially available | Only this tool has been tested and approved. |
| E | Extension 3/8 inch, 16° moveable | Commercially available | Only this tool has been tested and approved. |
| F | Cooling system testing device | Commercially available | Lid for coolant expansion tank (DS 22) |
| G | Cooling system testing device | Commercially available | Flexible extension (Fz 100 K) |
| H | Cooling system testing device | Commercially available | Pressure pump with pressure gauge (TVU 138/3) |
