Removing main headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Risk of damage to headlights due to chafing and excessive temperatures.
Headlights must not be covered when they are switched on, e.g. wing protection or film.

Release the side carpet by unscrewing plastic nut -A- -arrow-.

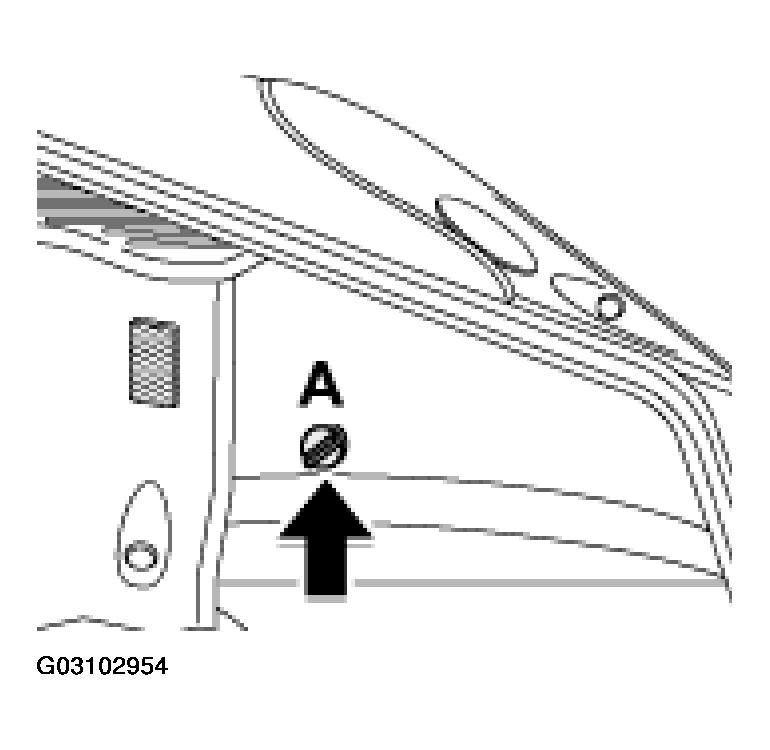

Fig 1: Identifying Plastic Nut For Releasing Side Carpet
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pull rubber stopper -B- off the release opening.

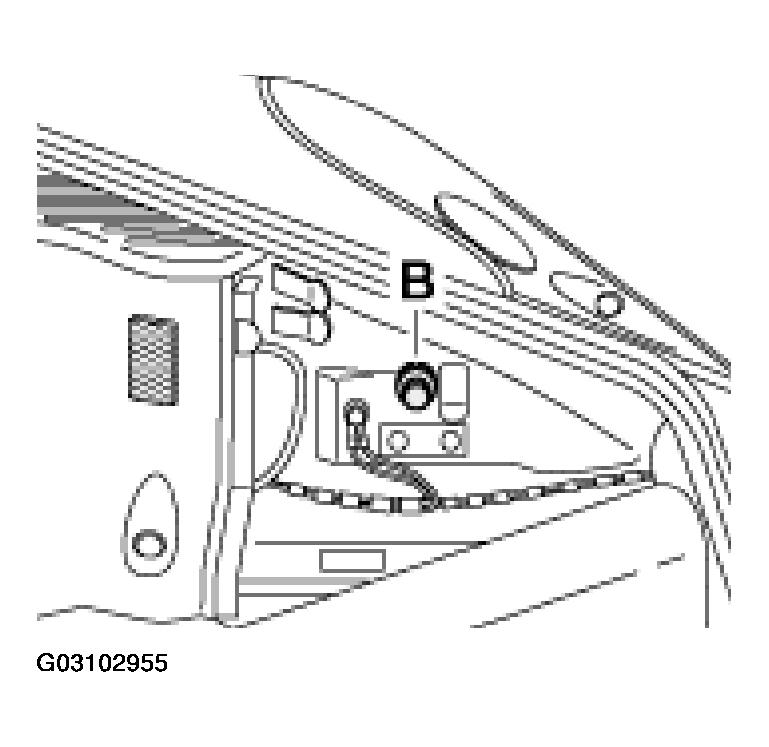

Fig 2: Pulling Rubber Stopper For Release Opening
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place the socket wrench from the tool kit on the release axle.

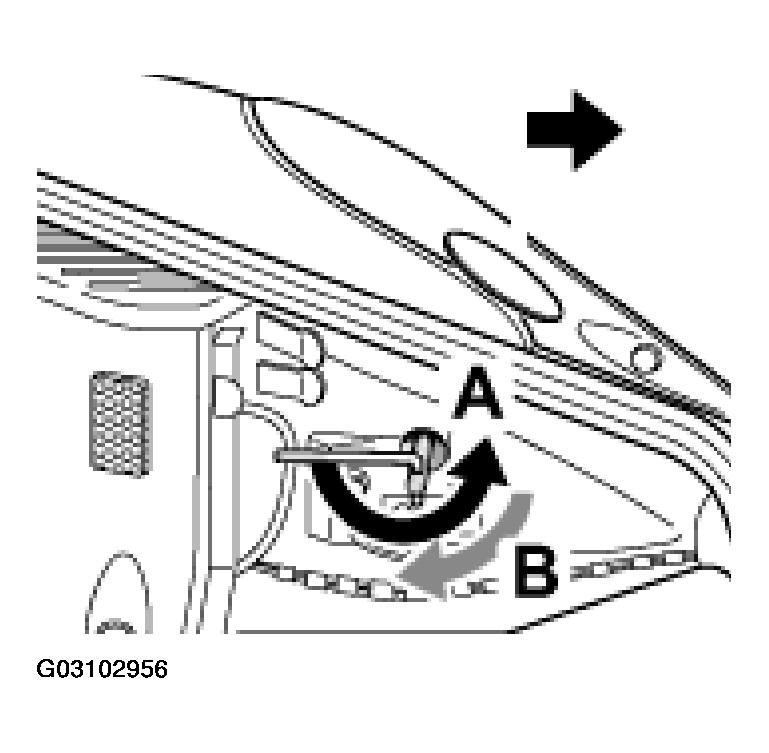

Fig 3: Placing Socket Wrench On Release Axle
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The toggle of the socket wrench should point horizontally to the rear.
Turn the socket wrench through approx. 180° -arrow A- and leave it in position. Refer to Fig 3.
The headlight is now unlocked and can be pulled forwards out of the wing.
Turn the socket wrench back until it points vertically -arrow B- downwards.
