Installing main headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not attach any covers (stone shields or films) in the area of the headlights.

Insert the headlight into the guide rails and push it fully into the wing -arrow- .

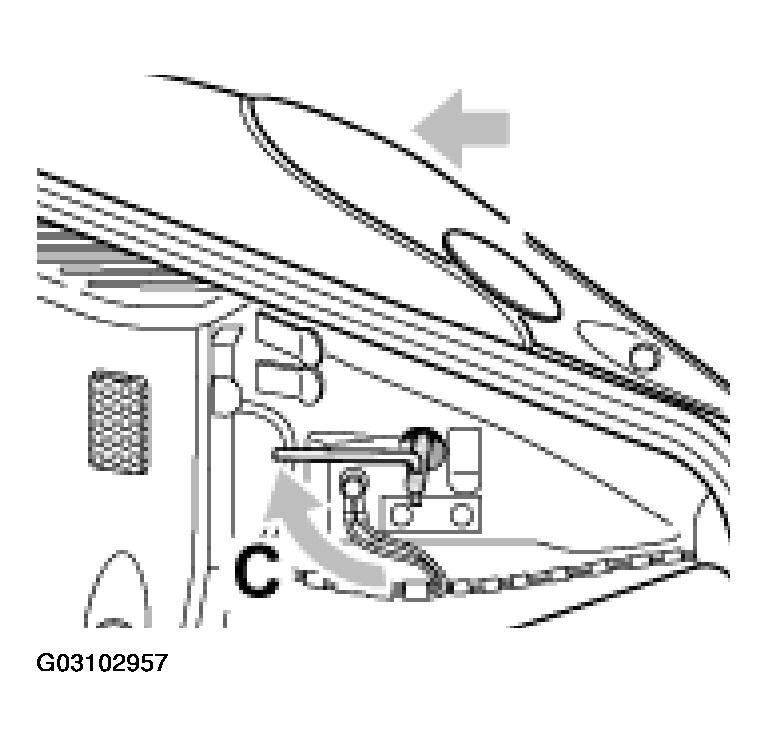

Fig 1: Pushing Headlight In To Wing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press the headlight to the rear, turning the socket wrench at the same time until the wrench points horizontally to the rear -arrow C-. Refer to Fig 1. In the process, the headlight lock must engage with an audible and perceptible click.
Check the correct seating of the headlight, for example, by pulling gently in the area of the fog light.

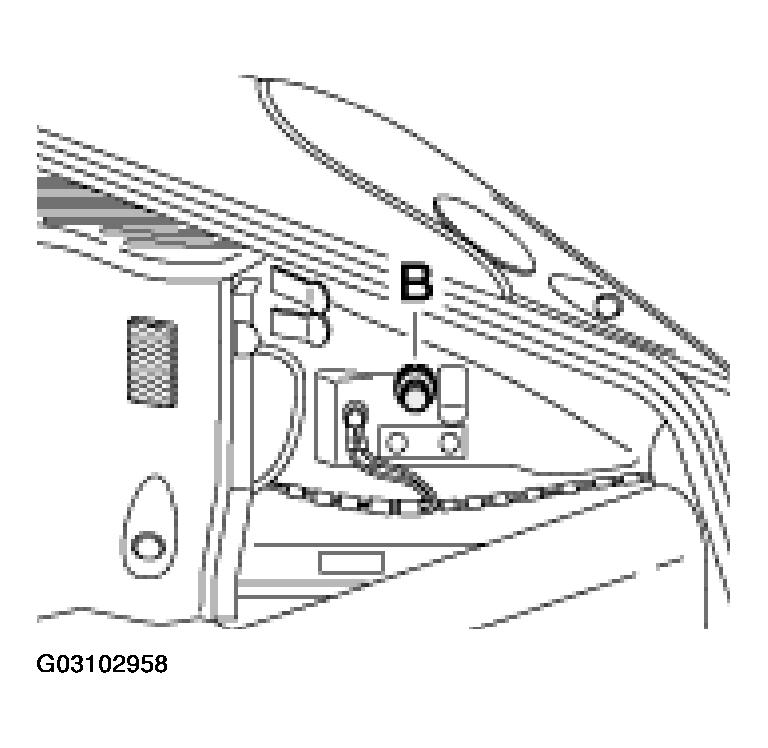

Fig 2: Inserting Rubber Stopper In Release Opening
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert rubber stopper in the release opening.
Screw the side carpet tight with the plastic screw -A- .

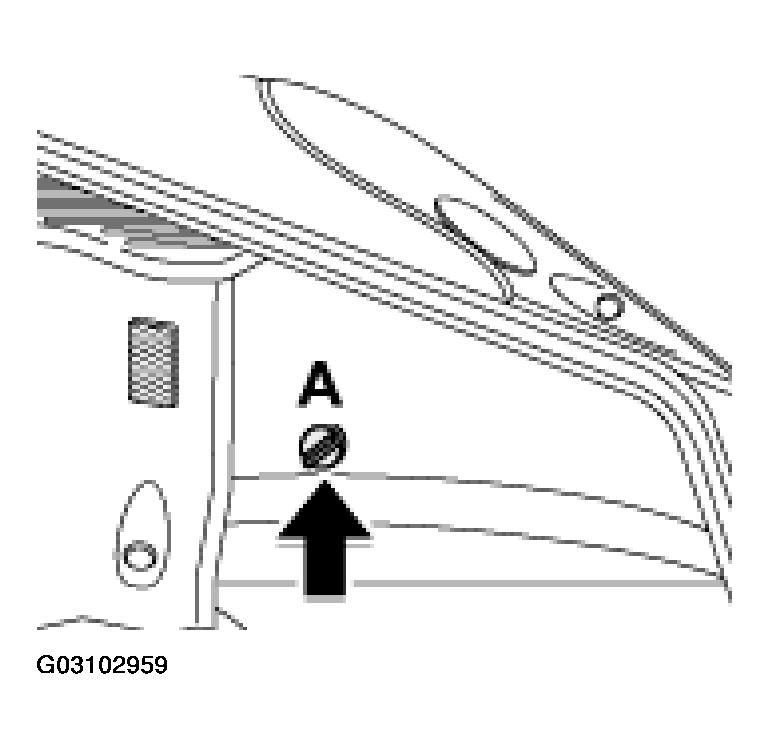

Fig 3: Identifying Plastic Screw For Tightening Side Carpet
Courtesy of PORSCHE OF NORTH AMERICA, INC.
