Coolant: Checking the level and antifreeze protection content

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The engine cooling system is factory-filled with a coolant which does not need to be changed. The coolant should not be mixed with other coolants.
Only Original Porsche anti-freeze should be used when changing or topping up the coolant.

Check anti-freeze content. To do this, open the lid on the coolant expansion tank and check with a frost protection testing device. If it is lower than - 35°C, it should be corrected accordingly.

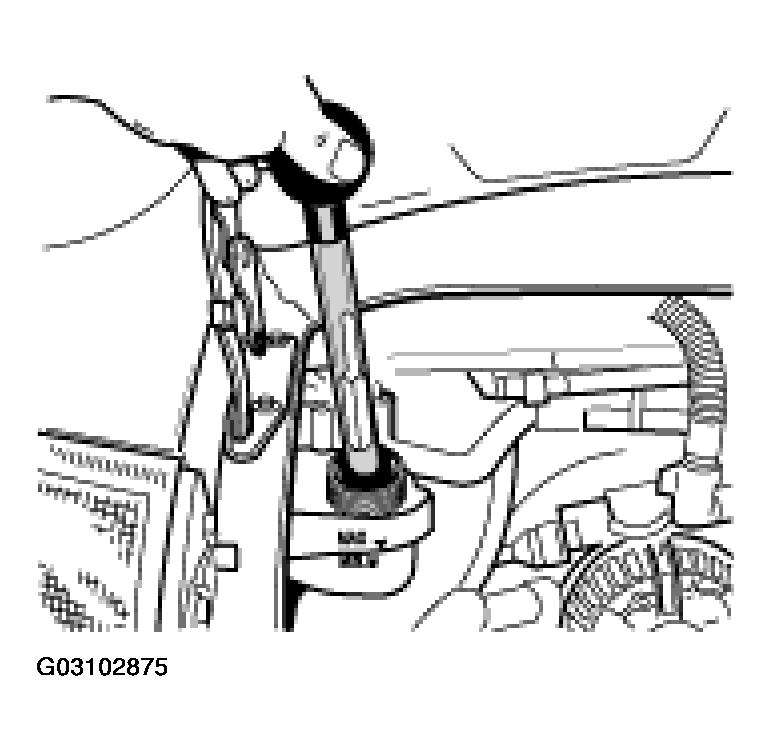

Fig 1: Checking Anti-Freeze Content Using Frost Protection Testing Device
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check the cooling system for leaks. To do this, apply a test pressure of approx. 1 bar using the cooling system test device and check hose connections for leakage.

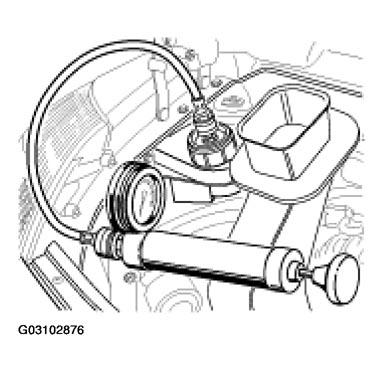

Fig 2: Checking Cooling System Leaks Using Cooling System Pressure Tester
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check cooling device for external dirt. The cooling device should not contain too much dirt. If necessary, it can be cleaned with a vacuum cleaner.

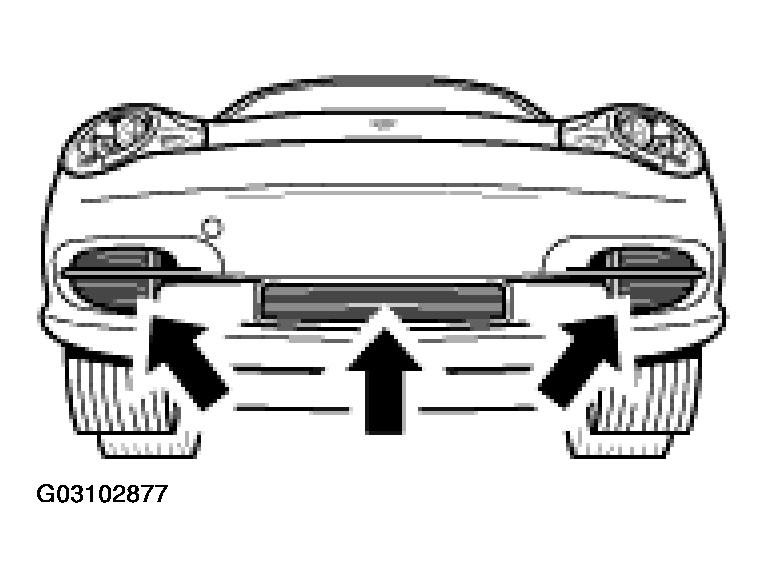

Fig 3: Checking Cooling Device For External Dirt
Courtesy of PORSCHE OF NORTH AMERICA, INC.
