Checking the brake fluid level

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out visual inspection of brake fluid level.
    NOTE:
    • The brake fluid level must be between min. and max.!
    • Observe brake-fluid quality. Use only new DOT4 brake fluid!
    • This brake fluid is available under the following part numbers: Quantity supplied 1 liters = 000.043.203.66 container volume. 30 liters = 000.043.203.67.
    • The information applies to vehicles with and without PSM!

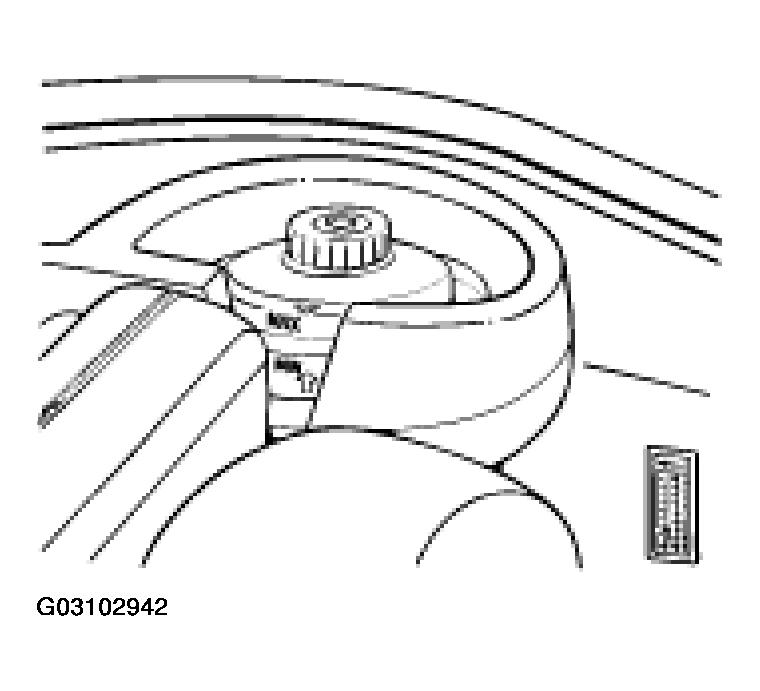

    Fig 1: Identifying Brake Fluid Reservoir
    G03102942Courtesy of PORSCHE OF NORTH AMERICA, INC.
