Floor assembly control dimensions for the 996 Carrera model from model year 2001
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All dimensions are measured to the middle of the hole or screwed point. The dimensions are measured directly and, therefore, are oblique dimensions. Dimensions in brackets are measured horizontally.

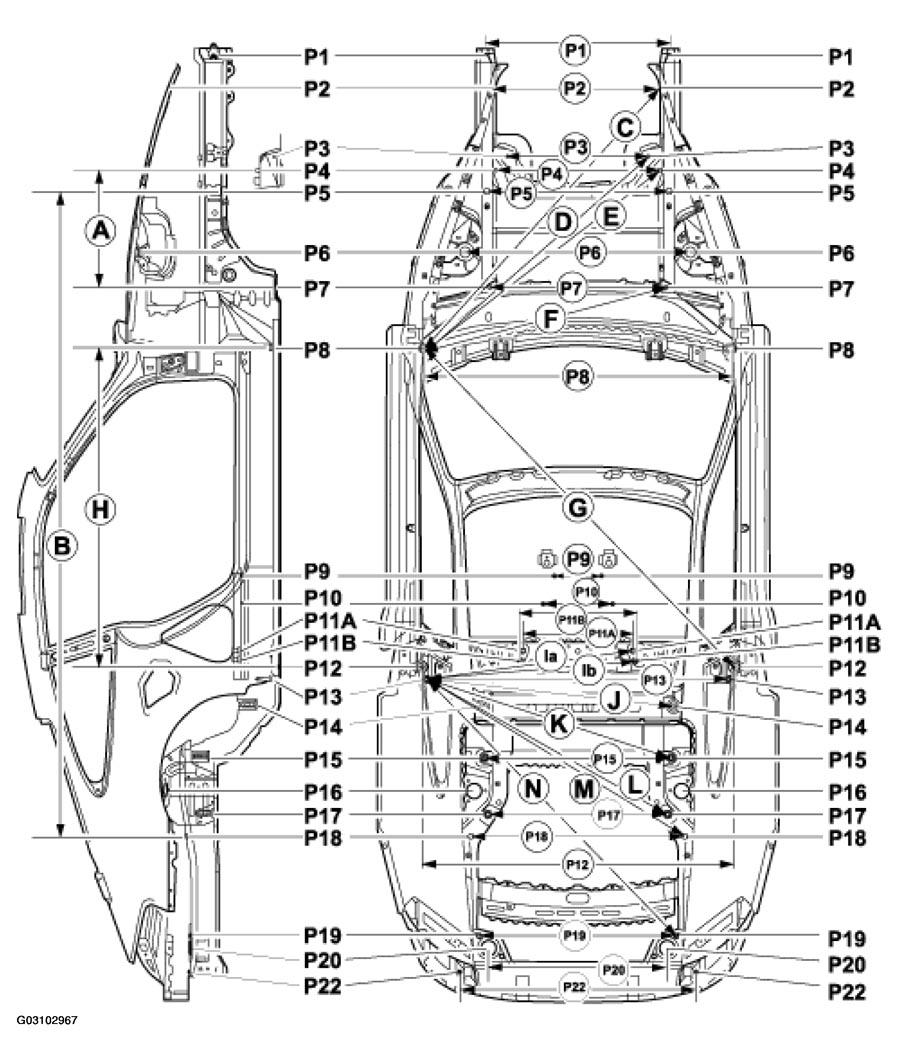

DIMENSIONS DESCRIPTIONS - 996 CARRERA
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P1 | P1 - P1 | Impact absorber / pipe front | 800 +/- 2 |
| P1 | P2 - P2 | Bearer side spare-wheel well | 712 +/- 2 |
| P3 | P3 - P3 | Front axle front, low | 610 +/- 1 |
| P4 | P4 - P4 | Front axle front, rear, high | 731,2 +/- 1 |
| P5 | P5 - P5 | Rational location hole, side member front | 800 +/- 1 |
| P6 | P6 - P6 | Spring strut bracket, front | 985 +/- 2 |
| P7 | P7 - P7 | Front axle front, rear | 773 +/- 1 |
| P8 | P8 - P8 | front jacking point for hoist or car jack | 1330 +/- 1 |
| P9 | P9 - P9 | Transmission support, front | 256 +/- 2 |
| P10 | P10 - P10 | Transmission support, front | 256 +/- 2 |
| P11A | P11A - P11A | GT3 rear transmission support (front screwed point) | 472 +/- 2 |
| P11B | P11B - P11B | Rear transmission support (rear screwed point) from model year 2001 | 490 +/- 2 |
| P12 | P12 - P12 | Rear jacking point for hoist or car jack | 1370 +/- 2 |
| P13 | P13 - P13 | Rear diagonal brace | 824 +/- 3 |
| P14 | P14 - P14 | Rear axle, front | 836 +/- 2 |
| P15 | P15 - P15 | Rear axle, centre | 821 +/- 2 |
| P16 | P16 - P16 | Spring strut bracket, rear | 915 +/- 2 |
| P17 | P17 - P17 | Rear axle, rear | 792 +/- 2 |
| P18 | P18 - P18 | Rational location hole, side member rear | 945 +/- 1 |
| P19 | P19 - P19 | Engine mount location hole outside | 889 +/- 2 |
| P19A | P19A - P19A | Valid For GT3 Outer engine mount take-up hole |
889 +/- 2 |
| P20 | P20 - P20 | Centre engine mount | 780 +/- 2 |
| P20A | P20A - P20A | Valid for GT3 Centre engine mount |
847+/-2 |
| P21 | P21 - P21 | Valid for GT3 Inner engine mount |
717 +/- 2 |
| P22 | P22 - P22 | Impact absorber /Pipe rear | 960 +/- 1.5 |
| A | P4 - P7 | In vehicle's longitudinal direction | 507 +/- 2 |
| B | P5 - P18 | In vehicle's longitudinal direction | 2795 +/- 1 |
| C | P8 - P2 | Vehicle diagonal dimension | 1525 +/- 2 |
| D | P8 - P3 | Vehicle diagonal dimension | 1279 +/- 2 |
| E | P8 - P4 | Vehicle diagonal dimension | 1279 +/- 2 (1283 +/- 2) |
| F | P8 - P7 | Vehicle diagonal dimension | 1084 +/- 2 |
| G | P8 - P12 | Vehicle diagonal dimension | 1929 +/- 2 |
| H | P8 - P12 | In vehicle's longitudinal direction | 1350 +/- 2 |
| I | P13 - P11 | Vehicle diagonal dimension | 875+/- (863 +/- 3) |
| l a | P13 - P11A | Vehicle diagonal dimension | |
| l b | P13 - P11B | Vehicle diagonal dimension | |
| J | P13 - P14 | Vehicle diagonal dimension | 1087 +/- 3 (1085 +/-3) |
| K | P13 - P15 | Vehicle diagonal dimension | 1159 +/- 3 (1125 +/-3) |
| L | P13 - P17 | Vehicle diagonal dimension | 1234 +/- 3 (1209 +/- 3) |
| M | P13 - P18 | Vehicle diagonal dimension | 1349 +/- 3 (1323 +/- 3) |
| N | P13 - P19 | Vehicle diagonal dimension | 1629 +/- 3 |
| Na | P13 - P19A | Vehicle diagonal dimension |
DIMENSIONS DESCRIPTIONS - 996 CARRERA
| Measuring point | Designation |
|---|---|
| P1 | Screwed point (M8 thread) |
| P2 | Bearer side spare-wheel well screwed point (M8 thread) |
| P3 | FA, front screwed point low (thread M12 X 1.5) |
| P4 | FA, front screwed point high (thread M14 X 1.5) |
| P5 | Rational location hole, side member front |
| P6 | Spring strut bracket, front |
| P7 | FA, rear screwed point (thread M14 X 1.5) |
| P8 | Hoist/car jack front location hole |
| P9 | Transmission support, front screwed point (thread M10) |
| P10 | Transmission support, centre screwed point (thread M10) |
| P11 | Transmission support, rear screwed point (thread M 12 x 1.5) |
| P12 | Hoist/car jack rear location hole |
| P13 | Diagonal brace front screwed point (thread M10) |
| P14 | RA front screwed point (thread M12x1.5) |
| P15 | RA centre screwed point (thread M12x 1.5) |
| P16 | Spring strut bracket, rear |
| P17 | RA rear screwed point (thread M12x 1.5) |
| P18 | Rational location hole, side member rear |
| P19 | Screwed point (thread M8) for outer engine mount take-up hole |
| P19A | Screwed point (thread M8) for outer GT3 engine mount take-up hole |
| P20 | Centre engine mount |
| P20A | Screwed point (thread M8) for outer GT3 engine mount |
| P21 | Inner GT3 engine mount, screwed point (thread M8) |
| P22 | Impact absorber / pipe rear screwed point (thread M8) |
